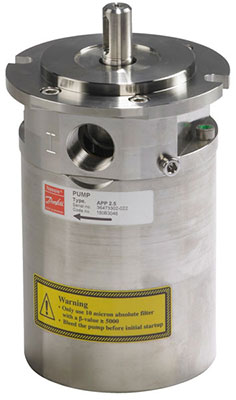

Danfoss Pump # 180B3046 Axial Piston pump
Danfoss # 180B3046
Danfoss catalog # 180B3046, APP 2.5 series Axial Piston pump with 3/4 inch threaded BSPP Inlet port, 3/4 inch threaded BSPP Outlet port, and is rated for a maximum flow of 11.6 GPM, and maximum outlet pressure of 1200 psig.
Price : $ 4498.98
Product Information :
The Danfoss Pump 180B3046 is an APP 2.5 series Axial Piston pump with 3/4 inch threaded BSPP Inlet port, 3/4 inch threaded BSPP Outlet port, and is rated for a maximum flow of 11.6 GPM, and maximum outlet pressure of 1200 psig. Danfoss APP high-pressure pumps are designed according to EN 809 for use in RO applications with low viscosity and corrosive fluids such as: Sea water, and Brackish water. Danfoss APP pumps are as standard made in a combination of Duplex Stainless Steel and Super-Duplex Stainless Steels. This pump is a positive displacement pump with axial pistons that move a fixed amount of water in each cycle. Flow is proportional to the number of input shaft revolutions (rpm). Unlike centrifugal pumps, they produce the same flow at a given speed no matter what the discharge pressure.
Parts and Accessories for Danfoss model 180B3046
Shaft Seal :
Catalog # 180B4147, Seal kit, used in APP 1.5, APP 1.8, APP 2.2, and APP 2.5 pumps.
Price: $ 256.94
Other Parts :
Catalog # 180B4143, Piston kit, set of 5, used in APP 1.5, APP 1.8, APP 2.2, and APP 2.5 pumps.
Price: $ 1321.84
Catalog # 180B4145, Valve plate kit, used in APP 1.5, APP 1.8, APP 2.2, and APP 2.5 pumps.
Price: $ 754.76
Catalog # 180B4146, Cylinder barrel kit, used in APP 1.5, APP 1.8, APP 2.2, and APP 2.5 pumps.
Price: $ 1076.69
Applications
Danfoss APP pumps are built into a broad range of RO desalination plants around the world. Other applications for the Danfoss 180B3046 include Containerized solutions for hotels, resorts and residences on islands and in coastal regions, Mobile systems for humanitarian and military organizations, Onboard systems for ships and yachts, Offshore platforms for the oil and gas industry, and Municipal and regional waterworks.
