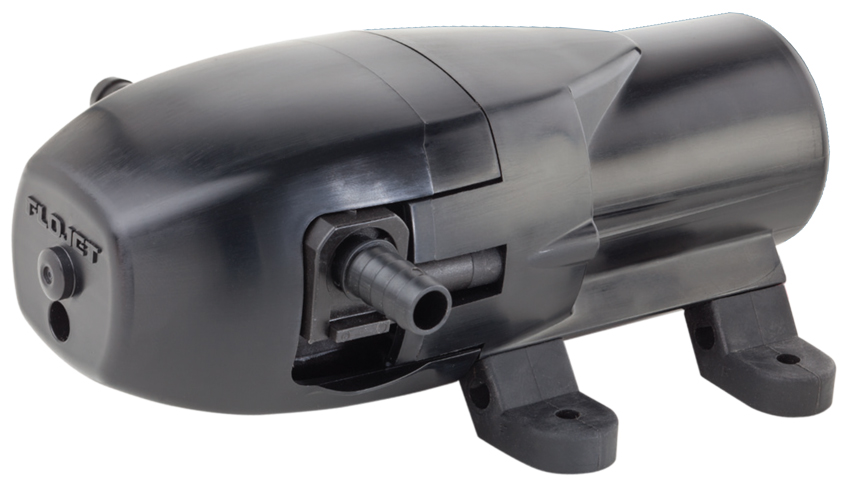

Flojet # LFP122-002 LF Plus Motor Driven Industrial Diaphragm Pump
Flojet catalog # LFP122-002
Flojet catalog # LFP122-002, LF Plus Series Diaphragm Pump, CE listed, with Polypropylene housing, Santoprene Diaphragm, EPDM Check Valve, 316 Stainless Steel Check Valve Spring, NO Pressure switch, NO bypass. Motor is 12 Volt DC. Inlet Port is 3/8 inch HB Straight, Discharge Port is 3/8 inch HB Straight.
Price : $115.38
Product Information :
The Flojet LFP122-002 is a LF Plus Series Diaphragm Pump, CE listed, with Polypropylene housing, Santoprene Diaphragm, EPDM Check Valve, 316 Stainless Steel Check Valve Spring, NO Pressure switch, NO bypass, with 3/8 inch HB Straight Ports, coupled to a 12 Volt DC Motor. This pump is the ideal solution for many applications including spraying, fluid transfer, filtration, cooling, dispensing and pressure boosting, and has a robust material selection, suitable for handling a broad range of chemicals. This new LF Plus Motor Driven Industrial Pump is backed by Flojets diaphragm pump technology, a brand enjoying over 35 years of operational excellence, and replaces the LF Series. It is a self-priming so it can be located above the supply tank, and can accommodate up to a 6 foot left (1.8m). This pump has dependable run dry capabilities and can run dry for extended periods of time without damage, extending the life of the pump. The motor has a built-in thermal protector, and has low amp draw for battery-powered applications. The motor is intended for intermittent duty cycles but can be run continuously for short periods of time. It has 360 degree quick connect swivel ports allow for complete freedom of port orientation, a cost effective solution, minimizing the need for additional components. The Duty Cycle of this pump is Intermittent.
WEIGHT : The Flojet LFP122-002 weighs 1.25 lbs.
Features :
Applications
The Flojet LFP122002 can handle a broad range of chemicals and is designed for a wide range of applications including General Industrial Applications such as Chemical Washdown, Evaporative Cooling Systems, Fluid Transfer, RO Reverse osmosis Filtration, Food Processing, and Water Dispensing; Automotive Applications such as Fluid Exchange; Agricultural Applications such as Fogging / Misting, ATV and Backpack Sprayers. This diaphragm pump is selfpriming and can run dry without harm. It is intended for intermittent duty cycles but can be run continuously for short periods of time. Mount pump vertically, with pump head down or horizontally in an accessible location. Do not compress feet with mounting screws. Use 3/8 inch I.D. flexible hose preferably braided or reinforced. Use hose clamps on the slipon hose barb connectors. CAUTION Install a Flojet inlet 40 mesh strainer in an accessible location for inspection and cleaning between the tank and pump inlet. This strainer or equivalent is required for pump warranty to be valid.
