Gianneschi # ACB-61E-12V Self Priming Liquid Ring Pump 0.18KW 1/4 HP
Gianneschi # ACB-61E-12V

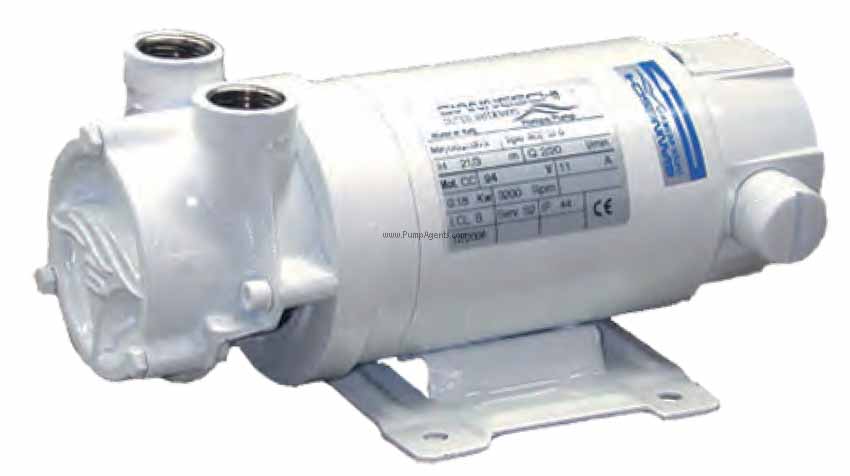

Gianneschi catalog # ACB-61E-12V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.18KW (1/4 Horsepower), 3200 RPM, 12 Volts DC. Inlet Port is 1/2 Inch, Discharge Port is 1/2 Inch.
Price : $ 1147.37
Product Information :
The Gianneschi ACB-61E-12V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 1/2 Inch by 1/2 Inch Ports, coupled to a 0.18KW (1/4 Horsepower), 3200 RPM, 12 Volts DC Motor. This pump is specially equipped with a brass impeller, 316 stainless steel shaft, bronze body, and a ceramic mechanical seal with graphite inox. It operates at 0.24 Hp, can go up to 3200 RPM, operates at 12 volts, and is self-priming up to 8 m. The pump must be first put through a water run, but then can operate with any specified fluid. It is recommended that the customer purchase a fiter and clapet valve to install with it to avoid backflow through it. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACB-61E-12V weighs 15.5 Lbs.
Features :
Applications
Typical applications for the ACB61E12V include fire fighting, oil and diesel, bilges, chain washing, and in pumping seawater as well as any fluids with high air content.
