Gianneschi # ACB-80E-24V Self Priming Liquid Ring Pump 0.37kW 0.5 HP
Gianneschi # ACB-80E-24V
Gianneschi catalog # ACB-80E-24V, ACB Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Brass impeller, 316 Stainless Steel Shaft. Motor is 0.37kW (0.5 Horsepower), 2800 RPM. . Inlet Port is 3/4 Inch, Discharge Port is 3/4 Inch.
Price : $ 2025.38
Product Information :

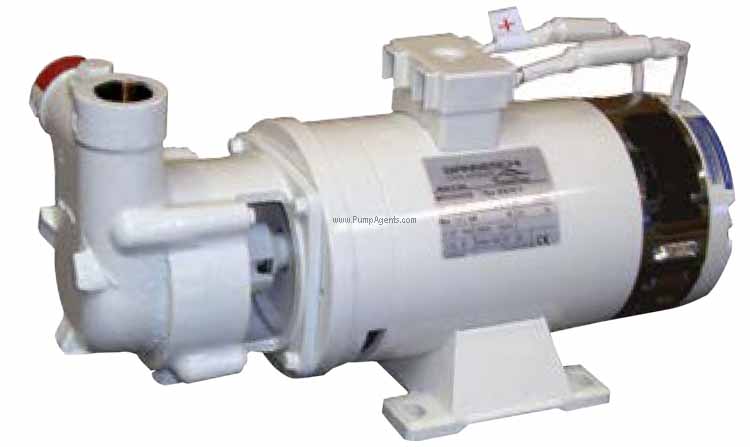

The Gianneschi ACB-80E-24V is a Bronze ACB Series Self Priming Liquid Ring Pump and Motor unit with Brass Impeller, 3/4 Inch by 3/4 Inch Ports, coupled to a 0.37kW (0.5 Horsepower), 2800 RPM Motor. This pump is self-priming up to 8 m, operates at 24 V at 0.5 Hp, and can go as high as 3000 RPM. It is suggested that one install a clapet valve and a filter with it to avoid backflow, and one only needs to pump water through it for its first run. It comes specially equipped with a high quality ceramic mechanical seal with graphite inox, a brass impeller, a 316 stainless steel shaft, and a bronze body. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACB-80E-24V weighs 24.2 Lbs.
Features :
Applications
Typical applications for the ACB80E24V include fire fighting, oil and diesel, bilges, chain washing, water supplying, and any applications involving the pumping of seawater or liquids with a high gas content.
