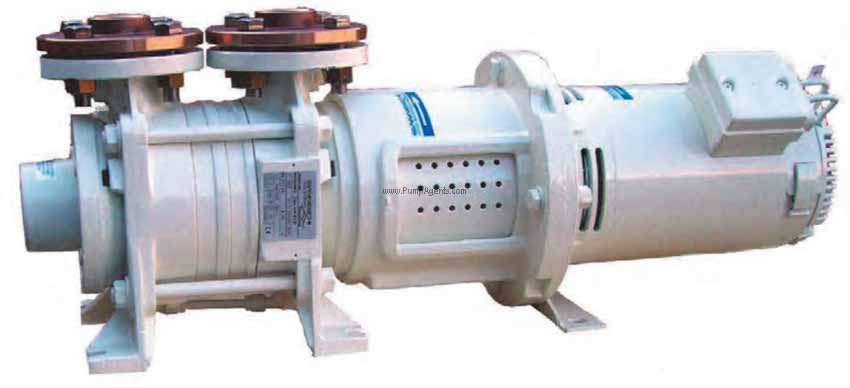

Gianneschi # ACM-401-24V Self Priming Multi Stage Pump 1.5 KW 2 HP
Gianneschi # ACM-401-24V
Gianneschi catalog # ACM-401-24V, ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 1.5 KW (2 Horsepower), 1450 RPM, 24 Volts DC. Inlet Port is 1-1/2 Inch, Discharge Port is 1-1/2 Inch. Catalog # 1AAM411.
Price : $ 12346.53
Product Information :
The Gianneschi ACM-401-24V is a Bronze ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/2 Inch by 1-1/2 Inch Ports, coupled to a 1.5 KW (2 Horsepower), 1450 RPM, 24 Volts DC Motor. This pump can go as high as 1750 RPM, operates at 60 Hz at 2 Hp, and is self-priming up to 8 m. It olny requires that one pump water through it on its first run in order for it to become fully operational, and it is suggested that one install a clapet valve and filter with it to prevent any backflow. It comes specially equipped with a 316 stainless steel shaft, a bronze body and impeller, and a high quality ceramic mechanical seal with graphite inox. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACM-401-24V weighs 175 Lbs.
Features :
Applications
This pump's main applications include seawater pumping, chain washing, bilges, diesel and oil, mixture pumping, water plant supply, fire fighting, as well as pumping liquids with high gaseous content.
