Gianneschi # ACM-402-230/400V Self Priming Multi Stage Pump 4 KW 5 HP
Gianneschi # ACM-402-230/400V

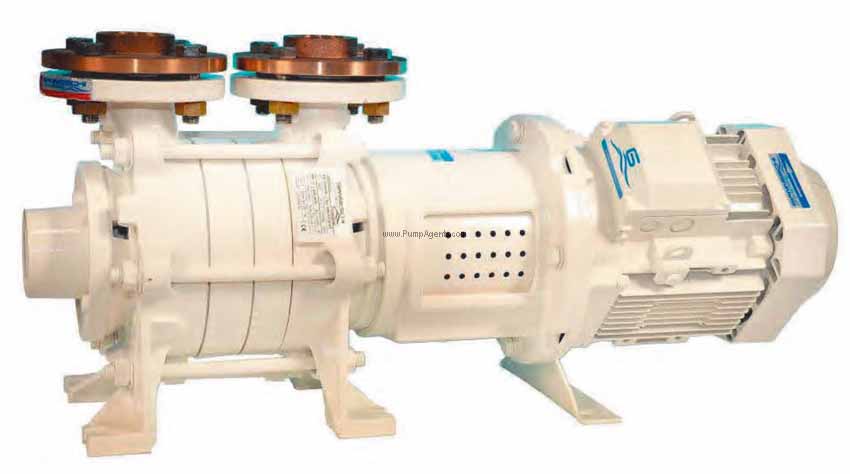

Gianneschi catalog # ACM-402-230/400V, ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 4 KW (5 Horsepower), 1450 RPM, 230/400 volts AC, 50/60 Hz, Three Phase. Inlet Port is 1-1/2 Inch, Discharge Port is 1-1/2 Inch. Catalog # 1AAM423.
Price : $ 13001.80
Product Information :
The Gianneschi ACM-402-230/400V is a Bronze ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/2 Inch by 1-1/2 Inch Ports, coupled to a 4 KW (5 Horsepower), 1450 RPM, 230/400 volts AC, 50/60 Hz, Three Phase Motor. This pump need only have water pumped through it on its first run in order for it to become fully operational, and it is recommended that one install a filter and clapet valve with it to prevent backflow. It operates at 60 Hz at 5 Hp, is self-priming up to 8 m, and can go as high as 1750 RPM. It is specially equipped with a bronze impeller and body, a high quality ceramic mechanical seal with graphite inox, and a 316 stainless steel shaft. Motor has F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi ACM-402-230/400V weighs 190 Lbs.
Features :
Applications
Typical applications for the ACM402230/400V include diesel and oil, mixture pumping, bilges, water plat supply, fire fighting, seawater pumping, chain washing, as well as in the pumping of liquids with high gaseous content.
