Gianneschi # ACM311BT-24V Self Priming Multi Stage Pump 1.0 KW 1.35 HP
Gianneschi # ACM311BT-24V
Gianneschi catalog # ACM311BT-24V, ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 1.0 KW (1.35 Horsepower), 1450 RPM, 24 Volts DC. Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch.
Price : $ 10769.22
Product Information :

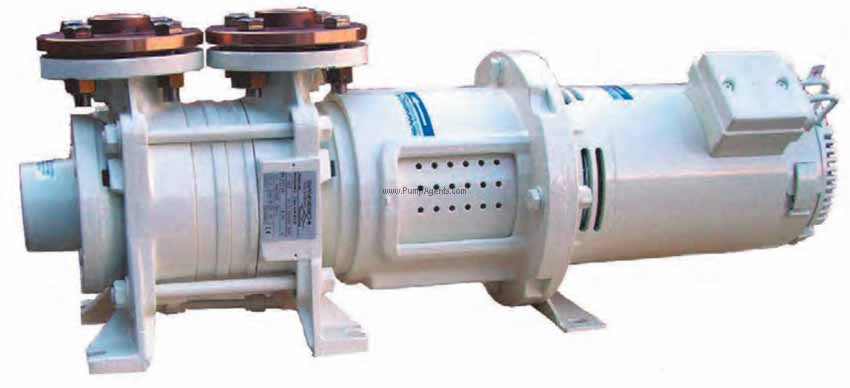

The Gianneschi ACM311BT-24V is a Bronze ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/4 Inch by 1-1/4 Inch Ports, coupled to a 1.0 KW (1.35 Horsepower), 1450 RPM, 24 Volts DC Motor. This pump comes specially equipped with a bronze body and impeller, a high quality ceramic mechanical seal with graphite inox, and a 316 stainless steel shaft. It only need have water pumped through it on its first run for it to become fully functional, and it is recommended that one install a clapet valve and filter with it in order to prevent backflow. It operates at 1.35 Hp, is self-priming up to 8 m, and can go as high as 1750 RPM. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACM311BT-24V weighs 143 Lbs.
Features :
Applications
Typical applications for the ACM311BT24V include chain washing, fire fighting, water plant supply, mixture pumping, bilges, diesel and oil, seawater pumping, as well as in the pumping of liquids with high gaseous content.
