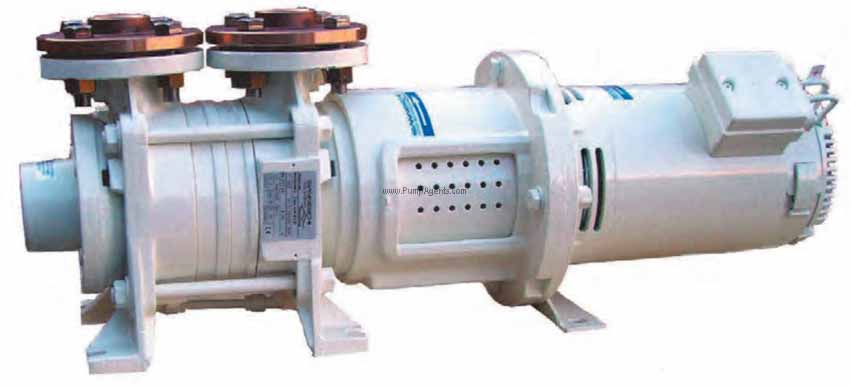

Gianneschi # ACM312BT-24V Self Priming Multi Stage Pump 1.5 KW 2 HP
Gianneschi # ACM312BT-24V
Gianneschi catalog # ACM312BT-24V, ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 1.5 KW (2 Horsepower), 1450 RPM, 24 Volts DC. Inlet Port is 1-1/4 Inch, Discharge Port is 1-1/4 Inch.
Price : $ 12201.49
Product Information :
The Gianneschi ACM312BT-24V is a Bronze ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/4 Inch by 1-1/4 Inch Ports, coupled to a 1.5 KW (2 Horsepower), 1450 RPM, 24 Volts DC Motor. This pump only requires that one pump water through it on its first run in order for it to become fully operational, and it is suggested that one install a clapet valve and filter with it to prevent any backflow. It operates at 60 Hz at 2 Hp, is self-priming as high as 8 m, and can go up to 1750 RPM. It comes specially with a bronze impeller and body, a 316 stainless steel shaft, as well as a high quality ceramic mechanical seal with graphite inox. Motor has B/F class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi ACM312BT-24V weighs 143 Lbs.
Features :
Applications
This pump's primary applications are in diesel and oil, seawater pumping, bilges, water plant supply, chain washing, mixture pumping, fire fighting, as well as in the pumping of liquids with high gaseous content.
