Gianneschi # ACM401BT-230V Self Priming Multi Stage Pump 2.2 KW 3 HP
Gianneschi # ACM401BT-230V
Gianneschi catalog # ACM401BT-230V, ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 2.2 KW (3 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase. Inlet Port is 1-1/2 Inch, Discharge Port is 1-1/2 Inch.
Price : $ 11489.24
Product Information :

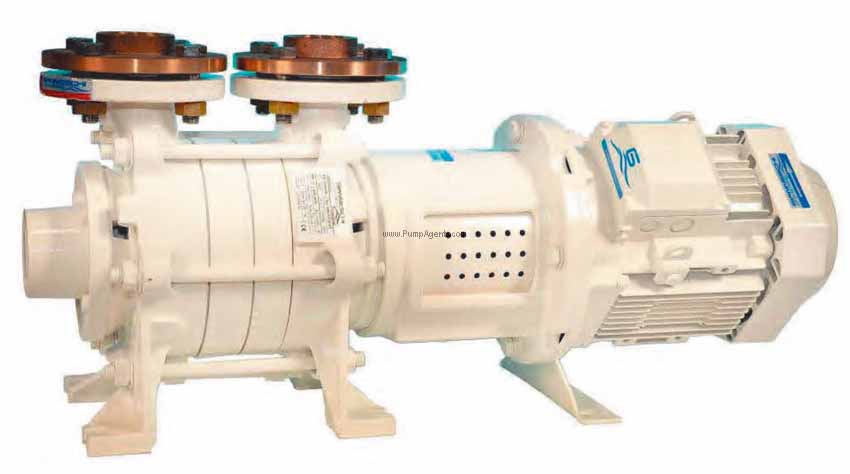

The Gianneschi ACM401BT-230V is a Bronze ACM Series Self Priming Multi Stage Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/2 Inch by 1-1/2 Inch Ports, coupled to a 2.2 KW (3 Horsepower), 1450 RPM, 230 Volt AC, 50/60 Hz, Single Phase Motor. This pump need only have water pumped through it on its first run in order for it to become fully operational, and it is recommended that one install a filter and clapet valve with it to prevent backflow. It operates at 60 Hz at 3 Hp, is self-priming up to 8 m, and can go as high as 1750 RPM. It is specially equipped with a bronze impeller and body, a high quality ceramic mechanical seal with graphite inox, and a 316 stainless steel shaft. Motor has F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi ACM401BT-230V weighs 175 Lbs.
Features :
Applications
Typical applications for the ACM401BT230V include diesel and oil, mixture pumping, bilges, water plat supply, fire fighting, seawater pumping, chain washing, as well as in the pumping of liquids with high gaseous content.
