Gianneschi # CB22-120-230/400V Centrifugal Pump 0.55 KW 0.75 HP

Gianneschi Pump CB22-120-230/400V

Gianneschi # CB22-120-230/400V

Gianneschi catalog # CB22-120-230/400V, CB Series Centrifugal Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 0.55 KW (0.75 Horsepower), 2900 RPM, 230/400 volts AC, Three Phase. Inlet Port is 1 Inch BSP Inlet, Discharge Port is 1 Inch BSP Outlet.

Price : $ 1906.24

Qty :

2 Weeks (0 in stock)



Product Information :

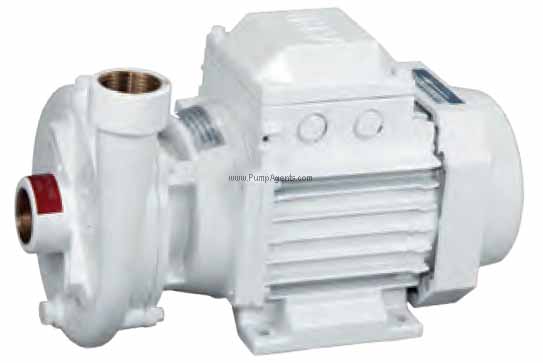

The Gianneschi CB22-120-230/400V is a Bronze CB Series Centrifugal Pump and Motor unit with Bronze Impeller, 1 Inch BSP Inlet by 1 Inch BSP Outlet Ports, coupled to a 0.55 KW (0.75 Horsepower), 2900 RPM, 230/400 volts AC, Three Phase Motor. This centrifugal pump transports fluids using rotational energy powered by the motor. The fluid is accelerated by the impeller, which is an open impeller type in this pump. The open impeller is suitable for clean or slightly dirty liquids. It is built to reach high water delivery rates at medium pressure. The pump is supplied with threaded ports, so a three piece pipe union is recommended at the suction and and discharge ports for ease of maintenance. This pump is not a self priming type so, for this reason, it needs to be installed under the water level to avoid the pump from emptying. It is not suitable for pumping flammable fluids or for use in explosion hazard areas. F class Insulation, IP 44/55 Protection
WEIGHT : The Gianneschi CB22-120-230/400V weighs 33 Lbs.

Features :

Pump Body:
Bronze
Impeller:
Bronze
Shaft:
316 Stainless Steel
Port Size:
Inlet Port is 1 Inch BSP Inlet, Discharge Port is 1 Inch BSP Outlet.
Motor Specs :
0.55 KW (0.75 Horsepower), 2900 RPM, 230/400 volts AC, Three Phase.

Applications

Typical applications for the CB22120230/400V include air conditioning systems, water supply, lifting fresh or salty water at sanitary plants, water circulations, increasing water pressure at water plants, pumping fresh water and seawater, and cooling and heating. Before installation, ensure that mains supply is grounded in accordance with local legislation and corresponds to motor plate detail. To reduce vibration block the pump with the bolts to the surface and install some vibration dumpers.
