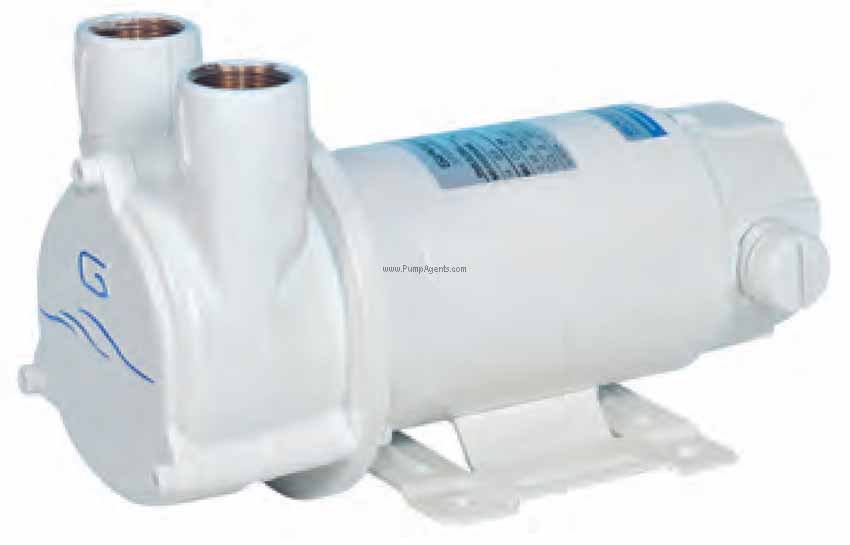

Gianneschi # CP-20-A1-24V Self Priming Liquid Ring Pump 0.18KW 0.25 HP

The Gianneschi CP-20-A1-24V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 3/4 Inch by 3/4 Inch Ports, coupled to a 0.18KW (0.25 Horsepower), 2800 RPM, 24 Volts DC Motor. This pump operates at 24 V at 0.27 Hp, an it can go as high as 2800 RPM, and is self-priming up to 8 m. It utilizes Class B insulation, IP20/22 protections, and is specially equipped with a high quality ceramic mechanical seal with graphite inox, a bronze body and impeller, and a 316 stainless steel shaft. It is recommended that one install a clapet valve and filter with its suction pipe in order to prevent any backflow through the pump, and the installer must pump water through it when rebboting or first initializing it in oreder to achieve the necessary suction for it to automatically prime itself. Motor has B class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi CP-20-A1-24V weighs 16 Lbs.
