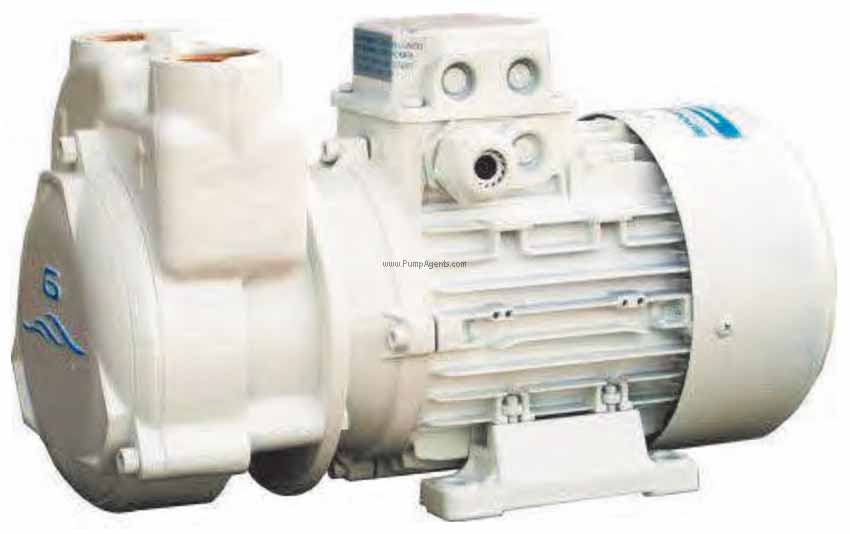

Gianneschi # CP-40/140B-230V Self Priming Liquid Ring Pump 2.2 KW 3 HP
Gianneschi # CP-40/140B-230V
Gianneschi catalog # CP-40/140B-230V, CP Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 2.2 KW (3 Horsepower), 1450 RPM, 230 volts AC, 50/60 Hz, Single Phase. Inlet Port is 1-1/2 Inch, Discharge Port is 1-1/2 Inch. Catalog # 01ACPN41402.
Price : $ 8041.95
Product Information :
The Gianneschi CP-40/140B-230V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 1-1/2 Inch by 1-1/2 Inch Ports, coupled to a 2.2 KW (3 Horsepower), 1450 RPM, 230 Volt AC, 50/60 Hz, Single Phase Motor. This pump operates at 2.95 Hp at 60 Hz, it ca go as high as 1750 RPM, and it is self-priming up to 8 m. It is recommended that one install a clapet valve and filter with its suction pipe to prevent any backflow through the pump, and the installer must pump water through it either when rebooting it or when first intializing it in order for it to achieve the necessary suction to be automatically priming. It comes specially equipped with a 316 stainless steel shaft, a high quality ceramic mechanical seal with graphite inox, and a bronze impeller and body, as well as utilizes Class F insulation and IP55 protections. Motor has F class Insulation, IP 55 Protection.
WEIGHT : The Gianneschi CP-40/140B-230V weighs 59 Lbs.
Features :
Applications
Typical applications for the CP40/140B230V include galleys, pumping seawater and fresh water, bilges, diesel and oil, showers, grey water discharges, as well as liquid intake. This pump is not suitable for viscous liquids or pumping abrasive liquids. Install the pump in a dry and well ventilated location with room temperature not above 50 degrees C. The pump must be placed on a solid and clean surface in horizontal position, feet down. To reduce vibration block the machine with the bolts to the surface and install some vibration dumpers. This pump usually does not need any maintenance so long as the following precautions are taken If there is a risk of freezing, it is necessary to empty the pump casing then fill the pump up before it gets working again. Make sure the pump never works dry. If the pump does not work for a long time it is better to empty the pump casing and clean it. If a filter and a foot valve are installed, check periodically their integrity and cleanness.
