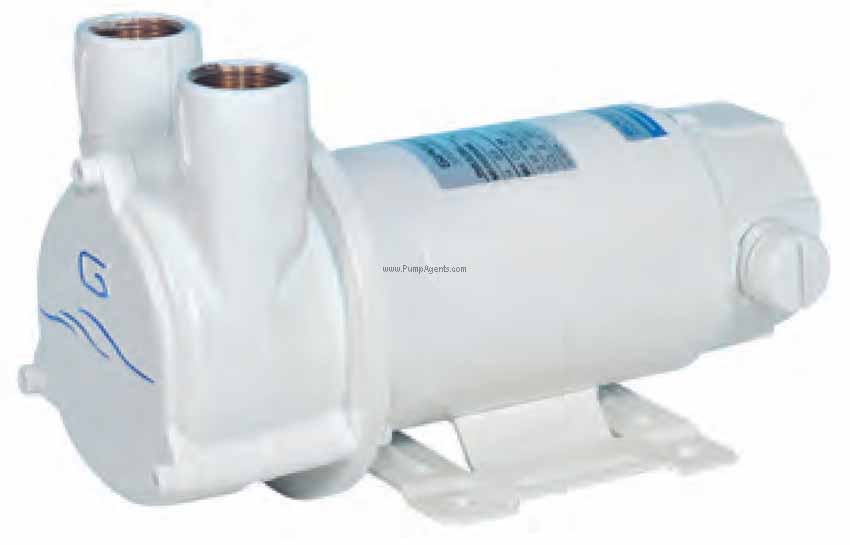

Gianneschi # CP20-A1G-24V Self Priming Liquid Ring Pump 0.18KW 0.25 HP
Gianneschi # CP20-A1G-24V
Gianneschi catalog # CP20-A1G-24V, CP Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 0.18KW (0.25 Horsepower), 2800 RPM, 24 Volts DC. Inlet Port is 3/4 Inch, Discharge Port is 3/4 Inch.
Price : $ 1341.62
Product Information :
The Gianneschi CP20-A1G-24V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 3/4 Inch by 3/4 Inch Ports, coupled to a 0.18KW (0.25 Horsepower), 2800 RPM, 24 Volts DC Motor. This pump operates at 24 V at 0.27 Hp, an it can go as high as 2800 RPM, and is self-priming up to 8 m. It utilizes Class B insulation, IP20/22 protections, and is specially equipped with a high quality ceramic mechanical seal with graphite inox, a bronze body and impeller, and a 316 stainless steel shaft. It is recommended that one install a clapet valve and filter with its suction pipe in order to prevent any backflow through the pump, and the installer must pump water through it when rebboting or first initializing it in oreder to achieve the necessary suction for it to automatically prime itself. Motor has B class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi CP20-A1G-24V weighs 16 Lbs.
Features :
Applications
Typical applications for the CP20A1G24V include liquid intake, grey water discharges, bilges, showers, diesel and oil, galleys, as well as in pumping seawater and fresh water. This pump is not suitable for viscous liquids or pumping abrasive liquids. Install the pump in a dry and well ventilated location with room temperature not above 50 degrees C. The pump must be placed on a solid and clean surface in horizontal position, feet down. To reduce vibration block the machine with the bolts to the surface and install some vibration dumpers. These pump usually do not need any maintenance so long as the following precautions are taken If there is a risk of freezing, it is necessary to empty the pump casing then fill the pump up before it gets working again. Make sure the pump never works dry. If the pump does not work for a long time it is better to empty the pump casing and clean it. If a filter and a foot valve are installed, check periodically their integrity and cleanness.
