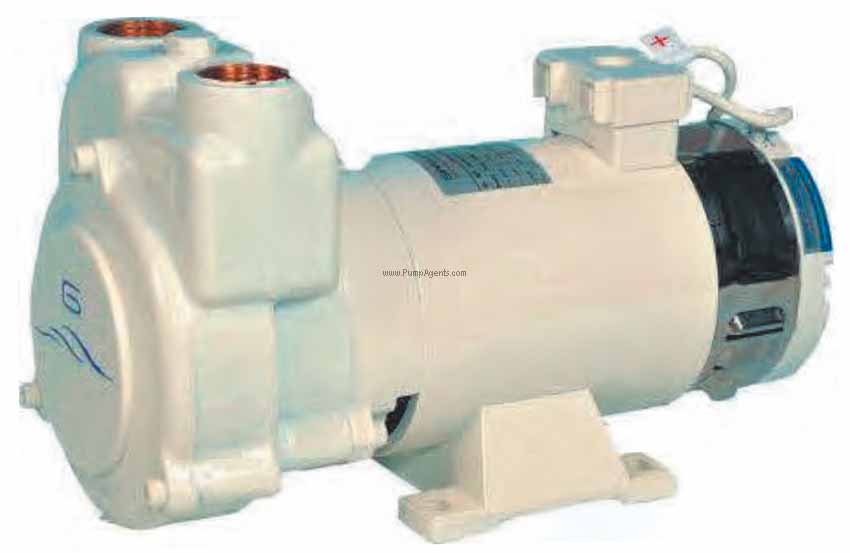

Gianneschi # CP30-A1G-24V Self Priming Liquid Ring Pump 0.45KW 0.6 HP
Gianneschi # CP30-A1G-24V
Gianneschi catalog # CP30-A1G-24V, CP Series Self Priming Liquid Ring Pump and Motor unit, Bronze construction, Bronze impeller, 316 Stainless Steel Shaft. Motor is 0.45KW (0.6 Horsepower), 1450 RPM, 24 Volts DC. Inlet Port is 1 Inch, Discharge Port is 1 Inch.
Price : $ 2382.80
Product Information :
The Gianneschi CP30-A1G-24V is a Bronze CP Series Self Priming Liquid Ring Pump and Motor unit with Bronze Impeller, 1 Inch by 1 Inch Ports, coupled to a 0.45KW (0.6 Horsepower), 1450 RPM, 24 Volts DC Motor. This pump can go as high as 1500 RPM, is self-priming up to 8 m, and operates at 0.74 Hp at 12 V. In order for it to achieve this self-priming ability, the installer must pump water through it on its first initialization, or after a long period of disuse. It is specially equipped with a high quality ceramic mechanical seal with graphite inox, Class B insulation, IP20/22 protections, a 316 series stainless steel shaft, and a bronze impeller and body. It is recommended that one also install a clapet valve and filter with its suction pipe to prevent any backflow through the pump. Motor has B class Insulation, IP 20/22 Protection.
WEIGHT : The Gianneschi CP30-A1G-24V weighs 27 Lbs.
Features :
Applications
Typical applications for the CP30A1G24V include liquid intake, grey water discharges, bilges, showers, diesel and oil, galleys, as well as in pumping seawater and fresh water. This pump is not suitable for viscous liquids or pumping abrasive liquids. Install the pump in a dry and well ventilated location with room temperature not above 50 degrees C. The pump must be placed on a solid and clean surface in horizontal position, feet down. To reduce vibration block the machine with the bolts to the surface and install some vibration dumpers. This pump usually does not need any maintenance so long as the following precautions are taken If there is a risk of freezing, it is necessary to empty the pump casing then fill the pump up before it gets working again. Make sure the pump never works dry. If the pump does not work for a long time it is better to empty the pump casing and clean it. If a filter and a foot valve are installed, check periodically their integrity and cleanness.
