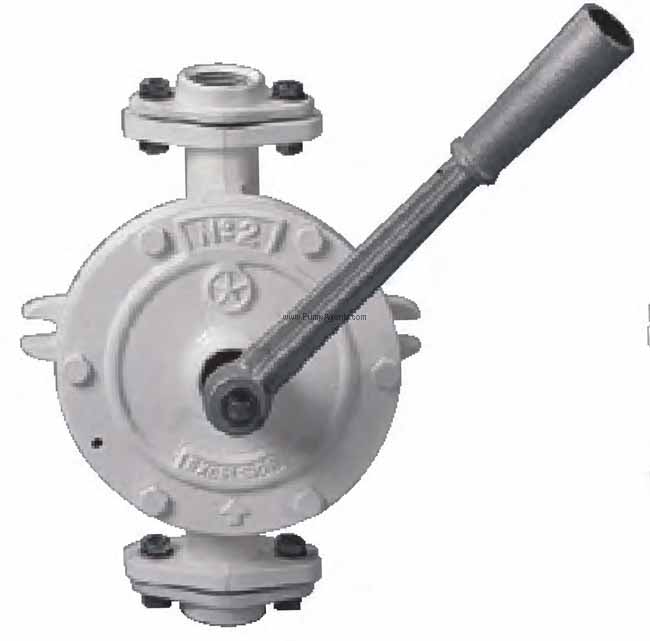

Gianneschi # EXCELSIOR-5-GB Hand Pump

Gianneschi Pump EXCELSIOR-5-GB

Gianneschi # EXCELSIOR-5-GB

Gianneschi catalog # EXCELSIOR-5-GB, EXCELSIOR 5 High Head Double Acting Semi Rotary Hand Pump, rated for 15.8 GPM at 95 feet head (40 PSI), Cast Iron construction, Bronze impeller. Inlet Port is 1-1/2 Inch, Discharge Port is 1-1/2 Inch. Catalog # 01HE5GB.

Price : $ 1999.48

Qty :

2 Weeks (0 in stock)



Product Information :

The Gianneschi EXCELSIOR-5-GB is a Cast Iron EXCELSIOR 5 High Head Double Acting Semi Rotary Hand Pump, rated for 15.8 GPM at 95 feet head (40 PSI) with Bronze Impeller, 1-1/2 Inch by 1-1/2 Inch Ports, coupled to a Close coupled to a Motor. This pump is suitable for lifting and pushing of clear liquids, and can be used for fresh or sea water. The body of the pump is cast iron, and the internal parts are bronze. The performance of this hand pump is in accordance with EN ISO 9906. The flow rate of 15.8 GPM at 95 feet head (40 PSI) is relative to 60 cycles/minute.
WEIGHT : The Gianneschi EXCELSIOR-5-GB weighs 31 Lbs.

Features :

Pump Body:
Cast Iron
Impeller:
Bronze
Port Size:
Inlet Port is 1-1/2 Inch, Discharge Port is 1-1/2 Inch.

Applications

Typical applications for the EXCELSIOR5GB include pumping aggressive liquids, bilge emptying, tanks, diesel oil intake, and oil transfer. If the pump fails to prime check suction line for leaks or obstructions, check the vanes and slots for nicks, burrs or wear, and check rotor for excessive wear or damage. If the pump has low pumping capacity check for leaks in suction line, and check rotor and vanes for excessive wear and damage. If there is pump fluid leakage clean Oring seal and seat area. Replace seal. Tighten covers and joints.
