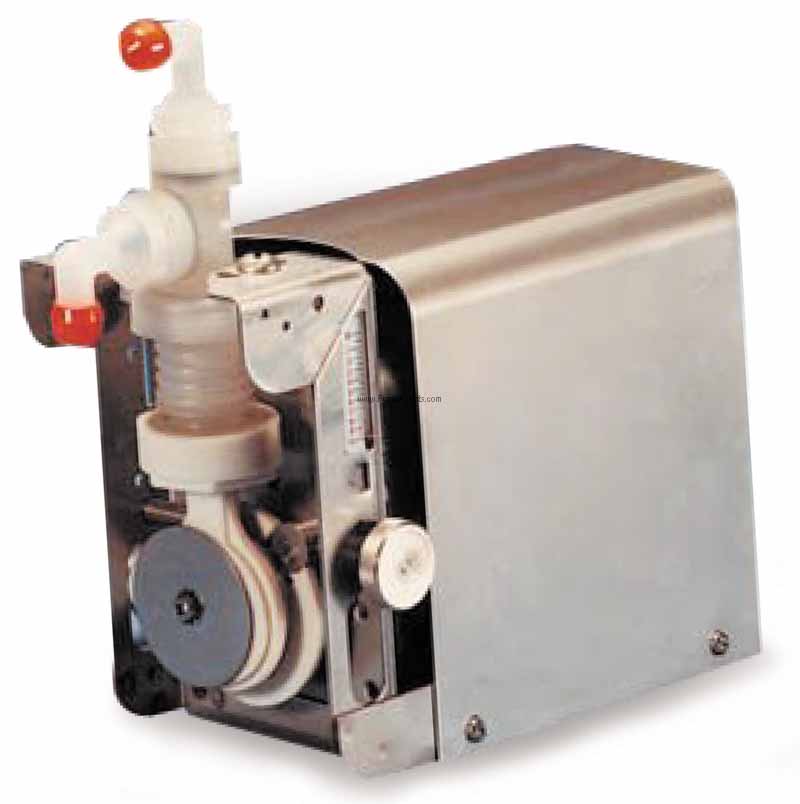

Gorman Rupp catalog # GRI-14251-007-X112-T09-X-112, Bellows Metering Pump and Motor unit, BEL O JUST series, 1-1/2 inch EPDM bellows and o-rings. Motor is 165 RPM, 115 Volts.
Price : $ 1033.01
The Gorman Rupp Industries (GRI) model # GRI-14251-007-X112-T09-X-112 is a Bellows Metering Pump and Motor unit, BEL O JUST series, with 1-1/2 inch EPDM bellows and o-rings, coupled to a 165 RPM, 115 Volt Motor. These pumps have a dry run capability, are self-priming, have no dynamic seals, are corrosion resistant, and have long, maintenance-free operation. The motors are UL recognized and continuous duty rated with a minimum life expectancy of 2000 hours. The standard motor is an open, shaded pole gearmotor. Perpetual running of motor is not recommended. These metering pumps operate on a positive displacement principle, and are designed to displace both corrosive and noncorrosive fluids. Accurate to plus/minus 0.5 percent from stroke to stroke, when pump is set 50 percent to 100 percent of full stroke. Discharge pressure is maintained over the entire flow range of the pump. Poppet valves are used to prevent back flow; and springs are available to provide a positive shutoff, preventing siphoning through the pump in applications where a positive suction head exists. The flow rate of all bellows pumps can be adjusted by modifying the length of the discharge stroke. Adjustments can be made down to 10 percent of full stroke. The flow rate can be adjusted while the pump is operating. A knob regulates drive arm motion which modifies the stroke length of the bellows module. Note: Best priming and metering accuracy occurs when the stroke length is 50 percent or greater. The maximum temperature for this pump is 140 F.
WEIGHT : The Gorman Rupp GRI-14251-007-X112-T09-X-112 weighs 5.5 lbs.
Typical applications for the GRI GRI14251007X112T09X112 include film and xray processors, silver recovery systems, wafer and silicon chip washers and processors, detergent dispensers, blood analyzing equipment, industrial floor scrubbers, thermo therapy equipment, waste removal systems, and wastewater and water treatment systems. Maximum fluid viscosity is 5,000 centistokes. The poppet valves in this pump can handle fine slurries. Duckbill valves are recommended for heavy slurries or fibrous materials. Heavy slurries should be flushed from the pump before shutdown.
Available T code port options T001 T1, T002 T2, T003 T3, T004 T4, T005 T5, T006 T6, T007 T7, T008 T8, T009 T9, T011 T11, T012 T12, T013 T13, T014 T14, T001 T01, T002 T02, T003 T03, T004 T04, T005 T05, T006 T06, T007 T07, T008 T08, T009 T09 ports.
