Groco # 155-6123-24 Waste Macerator Pump for 23 inch Tank depth
Groco # 155-6123-24
Groco catalog # 155-6123-24, Waste Macerator Pump and Motor unit with Square Tank flange, sized for 23 inch Tank depth, Bronze construction. Motor is 24 Volt DC. Inlet Port is 3/4 Inch ID Hose barb, Discharge Port is 3/4 Inch ID Hose barb.
Price : $ 966.72
Product Information :

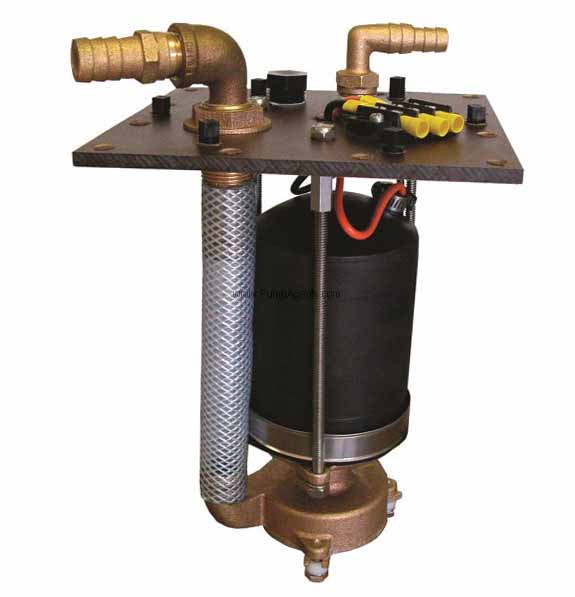

The Groco 155-6123-24 is a Bronze Waste Macerator Pump and Motor unit with Square Tank flange, sized for 23 inch Tank depth, with 3/4 Inch ID Hose barb Ports, coupled to a 24 Volt DC Motor. These waste macerator pumps make fast work (17 Gpm) of holding tank pump-out. Since waste is macerated before it leaves the tank, a smaller hose and overboard seacock (3/4 inch) may be used in the discharge line. It has a tank vent for 1/2 ID or 5/8 ID hose. Proper wire size selection is essential for safe and efficient pump operation. Protect 24 Volt DC 155-series pumps with a 10-amp circuit breaker.
Features :
Applications
The 155 Series will fit the same mounting used for discontinued MPT or MPS series macerator pumps. Between 1980 and 1999 Groco Macerator Pumps were offered in four different models MPS600 and MPS720 were submersible models, and MPT600 and MPT720 were tanktop models. Groco's experience in manufacturing wastehandling equipment has brought them to the introduction of 155series pumps, which combines all the best features of all previous models into a single submersible model, offered in lengths to fit any tank depth from 9inches to 36inches. This particular Groco 155612324 system is sized for a tank depth of 23 inches, if your tank requires a different depth please contact us. If your purchase of a 155series macerator pump is for a new installation you must order Groco kit MP hardware. If your purchase of a 155series pump is to replace one of the previously made Groco macerator pumps MPS600, MPS720, MPT600 or MPT720, 155series will fit the same tank mounting. Early MPT and MPS series pumps had a circular flange and mount pattern. If you are replacing a pump with a circular flange and mount pattern, the six plastic plugs on the 155series pump flange are to be removed and the vacated holes will align with the old circular flange mount pattern. If you wish to replace the circular gasket at this time order Groco part MP726.
