Groco # SPO-60-RT-12V Reversing Vane Pump

Groco Pump SPO-60-RT-12V

Groco # SPO-60-RT-12V

Groco catalog # SPO-60-RT-12V, Positive Displacement Reversing Vane Pump and Motor unit, Self Priming, controlled by Pump Mounted Touch Pad, Bronze construction. Motor is 12 Volt DC. Inlet Port is 1/2 inch NPT plus Garden Hose Adaptor, Discharge Port is 1/2 inch NPT plus Garden Hose Adaptor.

Price : $ 815.62

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

SPO-60-RT-12V Parts Page Parts Page (click here)

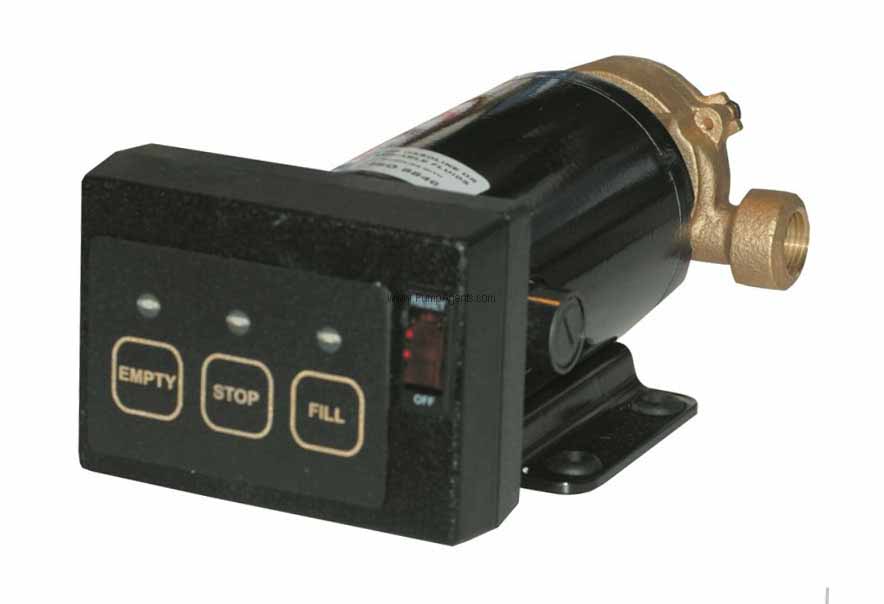

The Groco SPO-60-RT-12V is a Bronze Positive Displacement Reversing Vane Pump and Motor unit, controlled by Pump Mounted Touch Pad, Self Priming with 1/2 inch NPT plus Garden Hose Adaptor Ports, coupled to a 12 Volt DC Motor. This vane pump is a positive displacement pump, is self-priming, capable of operation in either direction, and it is instantly reversible. It has a relatively high flow (more than gear pumps) which makes it suitable for general purpose duties such as deck-wash, bilge pumping (filtered inlet), fuel transfer, ballast transfer, and oil change. The motor is ignition protected with a 316 stainless steel shaft. The pump is operated by a Pump-mounted Touchpad Control which is included with the unit. The touchpad switching is momentary. The pump can be installed in any orientation. If the pump is at or below the liquid source level, in-line valves may be installed at both pump ports to prevent fluid spills during pump service.
Important : DO NOT USE FOR GASOLINE or other combustible fluids.

Features :

Pump Body:
Bronze
Port Size:
Inlet Port is 1/2 inch NPT plus Garden Hose Adaptor, Discharge Port is 1/2 inch NPT plus Garden Hose Adaptor.
Motor Specs :
12 Volt DC.

Applications

The SPO60RT12V vane pump may be used to perform a variety of onboard duties such as fuel transfer, engine oil change or ballast trim. The pump should be installed in a dry location. When installing a reversing model as a transfer pump between two onboard tanks, locate the pump centrally between the two liquid sources, not more than 24 inches higher than the lowest of the two liquid sources. The pump should be powered and protected by a dedicated circuit breaker of the proper capacity. No regular maintenance is required. Annual inspection of plumbing and electrical connections should be made. If the pump is installed above the liquid level, no winterization is required. If the pump is installed at or below the liquid level, drain the pump body by removing the cover plate.
