Jabsco # 11810-0011 Bronze Utility Pump 1/3 HP
Jabsco # 11810-0011

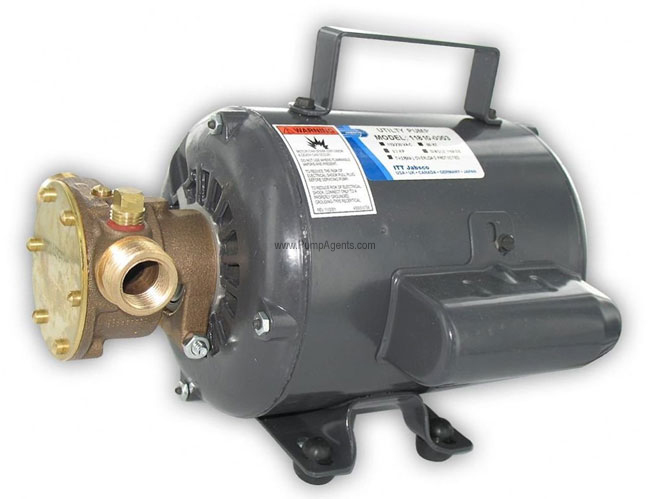

Jabsco catalog # 11810-0011, Bronze Utility Pump and Motor unit. Bronze Construction, with a Neoprene Impeller and Lip Type Seal. Pump is Close Coupled to a 1/3 Horsepower, 1725 RPM, 115 Volts, Single, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are 3/4 Inch Garden Hose External Thread and 1-1/2 Inch NPT Internal.
Price : $ 0.00
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 11810-0011 is a bronze Flexible Impeller pump with a Neoprene Impeller, Lip Type seal, coupled to a 1/3 Horsepower, 1725 RPM, 115 Volts, Single Phase, TEFC, 60 HZ Motor. Neoprene impeller is compatible with water and general purpose pumping. This pump is for general transfer pumping where self-priming, 10 gpm flow, debris tolerance and portable 115V AC operation is desired. The 11810 Series Pumps are robust Flexible impeller pumps with a substantial flow rate. These bronze bodied AC motor pumps are self-priming, portable and versatile, making them ideal for a wide range of applications wherever AC power is available.
Do not run dry. Motor is not explosion proof. Do not Pump gasoline or any fluid with a flash point below 100 degrees F (38 degrees C).
Features :
Product Specs :
9.5 GPM output at 10 feet total head.
Maximum head 40ft .
Continuous duty motor with thermal overload protection.
8 foot power cord with grounded plug.
Convenient carrying handle.
Self-priming: will lift fluid up to 22 feet when wet
Will not air lock: pump will continue to operate even when air passes through the system
Viscous liquids handling: will easily pump thin or thick liquids
Pulsation-free flow: delivers a smooth, even flow
Non-shear action: will handle delicate fluids
Hard solid handling: passes hard solids or abrasives with minimal wear or damage
Few moving parts: easy to maintain, so less downtime
Compact: will provide high flows from a small-size pump
Competitive: lower-cost installation and less maintenance than other competing pump types
Parts and Accessories for Jabsco model 11810-0011
Impeller :
Catalog # 5929-0001, Neoprene Impeller
Price: $ 105.26
Shaft Seal :
Catalog # 92700-0420, Seal
Price: $ 29.07
Applications
These pumps are versatile, multipurpose units that fill in where more specialised and expensive units are not practical for the job in hand. These Flexible Impeller utility pumps are bronze, so they retain that high quality found in the marine range. Non marine uses for these pumps may include chemical processing, recirculation of aqueous media including coolants and sump emptying. They are widely found in use at metalworking factories, agricultural facilities, waste water treatment works and building facility management companies. These units are portable and can be used anywhere across site from washdown to pump out applications. Typical Applications Include Marine Wash down, Marine Bait tank circulation, transfer oil, and utility dock pumps, Utility shop pump, Circulate coolant on machine tools, industrial filling systems, transfer distilled water, transfer gum arabic, hydrostatic pressure testing, recharge water softeners, ice water recirculation, vacuum pump, and aspirating pump. Can fill and empty tubs and pools, empty basements, cesspools, water systems, water lawns and gardens, remove water from low areas, and recharge water softeners. Can empty clogged sumps, drains, sinks and tubs, and pump out water closets. Can be used as a contractor pump to remove water from excavations, supply water to mortar boxes and cement mixing, and washdown equipment.
