Jabsco # 12210-0003 Handi-Puppy Utility Pump
Jabsco # 12210-0003

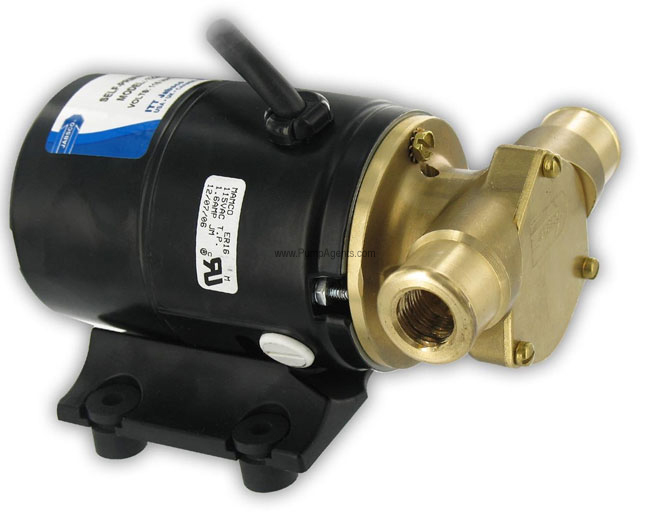

Jabsco catalog # 12210-0003, Handi-Puppy Utility Pump and Motor unit. Bronze Construction, with a Nitrile Impeller and Lip Type Seal. Pump is Close Coupled to a 115 Volt AC Motor. Ports are 3/8 Inch NPT Internal.
Price : $ 510.49
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 12210-0003 is a bronze Flexible Impeller pump with a Nitrile Impeller, Lip Type seal, 3/8 Inch NPT Internal Ports, coupled to a 115 Volt AC Motor, with a 6' cord. This pump has a Nitrile impeller which can be used for oil-based products. Temperature limits for Nitrile impellers are 50 degrees to 180 degrees F (10 degrees to 82 degrees C). The 12210 Series Pumps are the most compact, self-priming flexible impeller 115 volt AC utility pumps Jabsco offers. The Handi-Puppy is designed for intermittent duty in applications such as: transferring liquids; draining water heaters and water closets; pumping water from basements and other applications which require a few hours of continuous operation. Pump may be mounted at any angle without loss of efficiency. Suggested mounting is horizontal or with pump head down. The inlet port is the right hand port when looking at the end cover. This pump has a vertical dry suction lift of 5 feet with Neoprene impeller. Pump will produce suction lift up to 20 feet when wetted. Be sure suction lines are airtight or pump will not self-prime. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the plastic pump components.
Motor is NOT explosion-proof.
Features :
Product Specs :
Bronze pump head.
3.4 GPM output at 10 feet total head.
Replaceable brushes.
Intermittent duty cycle.
6 foot power cord with grounded plug.
Convenient carrying handle.
Easy to service and maintain.
Will tolerate abrasive wear
Handles hard and soft solids without clogging.
Non pulsating flow
Parts and Accessories for Jabsco model 12210-0003
Major Overhaul Kit / Rebuild Kit :
Catalog # 90092-0004, Service Kit, Nitrile, with Nitrile Impeller, O-ring and Seal
Price: $ 51.01
Impeller :
Catalog # 1414-0003-P, Impeller - Nitrile
Price: $ 31.40
Shaft Seal :
Catalog # 93000-0100, Lip Seal
Price: $ 15.71
Applications
These pumps are versatile, multipurpose units that fill in where more specialised and expensive units are not practical for the job in hand. Jabscos utility pumps are bronze, so retain that high quality found in the marine range. Industrial applications for this pump include Transferring liquids, Velocitymixing, Pumping coolants, Pumping waste water to sewer. Cellar, yard and sump drainage, Cooling Heliarc welding equipment. Farming applications Pumping water for stock, poultry houses, farm house, Pumping water from wells and cisterns, Pumping liquid ballast into tractor tires,Pumping water from flooded basements. Marine applications Washing down decks and docks, Water for ship's service supply, Pumping out crankcase oil. Plumbing and Home use applications Pumping out flooded basements, cesspools, sumps, etc. Draining water heaters and water closets, Draining laundry tubs below sewer level, Removing water trapped between walls, draining inaccessible places when pipes break or leak. Draining fishing ponds and garden pools, Removing sludge, lyewater and other caustics from stopped up drains and sinks.
