Jabsco # 14282-0001 Impeller

Jabsco Pump Parts 14282-0001

Jabsco # 14282-0001

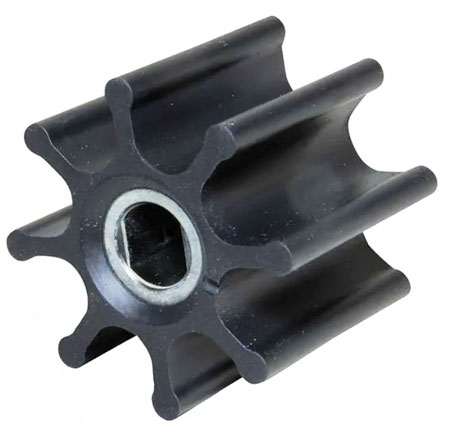

Jabsco catalog # 14282-0001, Flexible Flexible Impeller, made of Neoprene. Impeller has 8 blades/fins, and is 2-9/16 inches wide (65mm) x 2 inches thick (51mm), and has a 5/8 inch (16mm) Epoxy Plastic Double Flat shaft hub.

Price : $ 114.15

Qty :

Same Day (53 in stock)



Product Information :

The Jabsco impeller # 14282-0001 is a flexible rubber impeller, made of Neoprene, with 8 blades/fins, and is 2-9/16 inches wide (65mm) by 2 inches thick (51mm), and has a 5/8 inch (16mm) Epoxy Plastic Double Flat shaft hub. This impeller is made from Neoprene rubber material, which is the standard impeller material used for most flexible impellers. It offers a wide range of chemical resistant properties and has a temperature range of 45 degrees F (7 C) to 180 degrees F (82 C). Liquids compatible with neoprene can be pumped including fresh and salt water solutions and mild chemicals, and is suitable only when small amounts of oil or diesel fuel are present. Oils and fuels will cause the impeller to swell. Do not pump severe solvents or acids. If in any doubt about pump material compatibility, consult Jabsco Chemical resistance table or factory. If corrosive products are pumped, pump life will be prolonged if pump flushed with water at the end of each work cycle. Jabsco flexible impellers are subjected to rigorous quality processes to ensure reliable, efficient and long lasting performance.

NUMBER of BLADES : 8.

SHAFT HUB TYPE : Double Flat.


DIMENSIONS : 2-9/16 inches wide (65mm wide), 2 inches thick/deep (51mm), with 5/8 inch (16mm) Double Flat shaft hub.

Applications:

The Jabsco 14282-0001 is a replacement impeller used in Industrial processing applications. After replacing and installing the new impeller, the pump will need up to 30 seconds to prime - DO NOT run dry any longer than 30 seconds as the lack of liquid will damage the impeller. Ensure suction pipework is airtight or the pump will not self-prime.

Impeller Replacement:

Replacing impellers is easy. By removing the end cover screws, it is possible to remove the impeller by using either a Jabsco Impeller Removal Tool, or channel lock pliers, to grip the hub of the impeller. Don't use screwdrivers as they may damage the face of the pump body, causing leaks, and they can be dangerous in confined spaces.
The Flexible Impeller Removal Tool is the easiest way to remove impellers, especially when the pump is mounted in tight and cramped conditions. The Flexible Impeller Removal Tool easily removes the impeller, and removes the risk of expensive damage to the pump.
Click here for the Jabsco # 50070-0200 impeller puller sized for this impeller >>
The Jabsco # 50070-0200 Flexible Impeller Removal Tool is suitable for impellers from 2-1/2 inches (65mm) to 4-5/8 inches (118mm) in diameter. The Jabsco 14282-0001 impeller is 2-9/16 inches (65mm) in diameter.
Always grease new impellers. Firstly, it makes it easier to install the impeller into the pump bore, and secondly it gives added protection to the impeller during initial prime. After replacing the gasket and end cover the pump is ready to use.

Troubleshooting:

This is a replacement impeller.
Depending on how often you use the pump and how hard you are on the impeller you may need to replace this once every few years, or a few times per year.
The normal end of the flexible impeller is when there are some pieces of a blade or blades missing, and/ or some of the impeller blades are permanently and excessively curved. The blades might also be cracked about half way up their height. Sometimes the impellers can wear out because of system issues like cavitation or air being sucked into the system, and you might see pieces missing from blades tips especially in center of impeller.
Note that Flexible Impeller pumps need up to 30 seconds to prime - but do not run dry any longer as lack of liquid will damage the impeller.
If the system does not have liquid in it while the impeller is running for even a minute the impeller can burn out. If this is the case you will see that the impeller end faces are hard, polished, and cracked, like carbon. You may be missing some or all of the blades completely in severe cases. Do not run your impellers dry / without liquid. |
