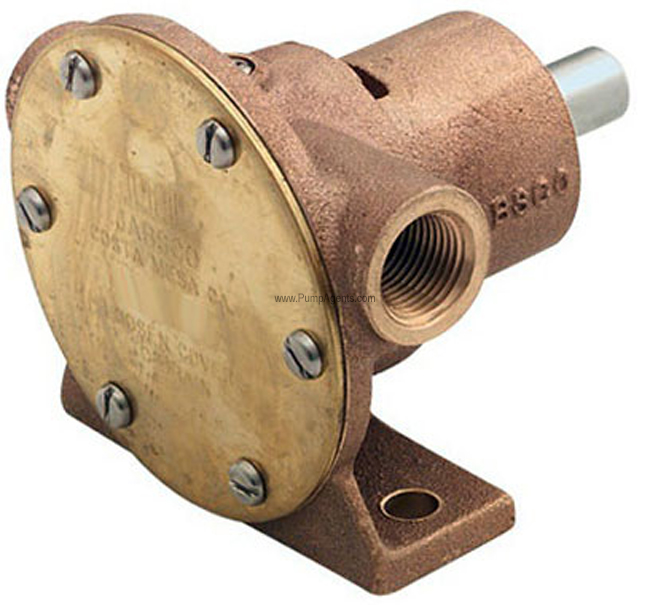

Jabsco # 1673-7001 Bronze Pedestal Flexible Impeller Pump
Jabsco # 1673-7001
Jabsco catalog # 1673-7001, Bronze Pedestal Flexible Impeller Pedestal Pump, bare shafted pedestal pump end only without a Motor. Bronze Construction, with a Neoprene Impeller and Lip Seal. Ports are 1/2 Inch NPT.
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 1673-7001 is a bronze Flexible Impeller pump with a Neoprene Impeller, Lip Seal, 1/2 Inch NPT Ports, bare shafted pedestal pump end only without a Motor. These flexible impeller pumps are self-priming and pump instantly with dry suction, lifts up to 10 feet (3m) and up to 25 feet (8m) when wetted. Permits cleaner, safer installations. No foot valve required. The bronze bodies and stainless steel shafts are well suited for marine environments. These pumps have replaceable cams and wearplates for extended product life, and they have one moving part a tough, long-lived, wear-resistant flexible impeller, lubricated by the liquid being pumped. No metal-to-metal pumping action no gears to jam, clog or become noisy. This Jabsco flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. It operates at low or high speeds, can be mounted at any angle and pumps in either direction with equal efficiency.
Do not pump light fraction petroleum derivatives, solvents, thinners, highly concentrated or organic acids. Damage to pump may result.
Features :
Product Specs :
Flow rate: Nominal 40 Litres/min at 1500rpm
Self-priming up to 10 feet vertical lift.
Two single row ball bearings.
Constructed from marine quality bronze and stainless steel for ruggedness and reliability.
Easy to service and maintain.
Inexpensive to buy and operate.
Will tolerate abrasive wear .
Handles hard and soft solids without clogging.
Can pump in either direction.
Will not airlock.
Parts and Accessories for Jabsco model 1673-7001
Applications
Pump may be mounted in any position. Intake and discharge ports are determined by the direction of shaft rotation. Before installing, turn the pump shaft in the direction of the operating rotation. Operating in either direction, these flexible impeller pumps are ideally suited to washdown, circulation and fire duty applications onboard or dockside. They are also ideally suited for the following applications MARINE Engine cooling, Pumping bilges, Washdowns, Circulating water in bait tanks, Utility dock side pump. INDUSTRIAL Circulating and transferring, Velocitymixing, Pumping machine tool coolants, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Various acids, Tanning liquors, Glycerine, Brine, etc. FARMING Pumping water for stock, Pumping water from shallow wells and cisterns, Pumping liquid ballast into tractor tires. PLUMBING AND HOME EMERGENCY USE Pumping out flooded basements, Cesspools, Sumps, Water heaters and water closets, Drains and sinks, Draining fishponds and pools. TEMPERATURES Neoprene Impeller 45 degrees F 180 degrees F 7 degrees C 82 degrees C.
