Jabsco # 18610-0271 Bronze Utility Pump 1/4 HP
Jabsco # 18610-0271

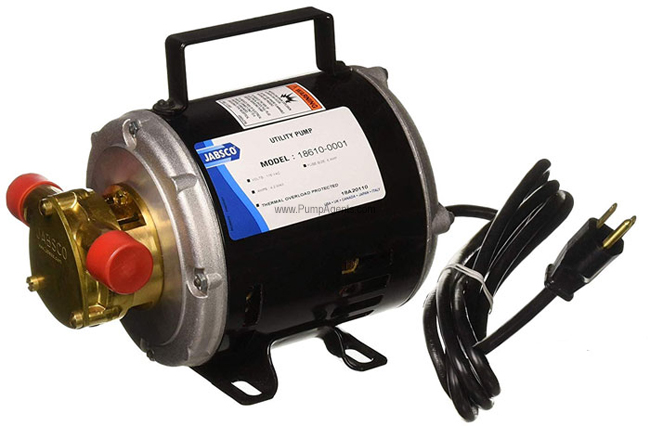

Jabsco catalog # 18610-0271, Bronze Utility Pump and Motor unit. Bronze Construction, with a Neoprene Impeller and Neoprene Lip Type Seal. Pump is Close Coupled to a 1/4 Horsepower, 115 Volts Motor. Comes with a 8 foot Cord 3 Prong Grounded Plug. Ports are 1/2 Inch NPT Ports with 3/4 Inch male garden hose adapter.
Price : $ 943.85
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 18610-0271 is a bronze Flexible Impeller pump with a Neoprene Impeller, Neoprene Lip Type seal, coupled to a 1/4 Horsepower, 115 Volts, 60 HZ Motor, with a 8 foot Cord 3 Prong Grounded Plug. The Neoprene impeller in this pump is good for water and general-purpose pumping. Vertical dry suction lift of 6 feet with Neoprene impeller. Pump will produce suction lift up to 20 feet when wetted. Be sure suction lines are airtight or pump will not selfprime. Temperature limits for Neoprene impeller are 45 degrees F to 180 degrees F ( 7 degrees C to 82 degrees C). The 18610 Series Pumps are very versatile, moderate flow rate, portable self-priming utility pumps suitable for continuous duty applications. Use these pumps for general transfer pumping where self-priming, 6 GPM (22.8 LPM) flow, debris tolerance and portable 115 Volt AC operation is desired. Long-lasting AC induction motor has no brushes to wear out. For continuous operation at 75 degrees F (24 degrees C), do not exceed 15 psi (1 bar) outlet pressure or 38 feet (11.6m) of lift. Pump may be mounted in any position. Inlet port is on the right and discharge port on the left when facing pump.
Do not pump gasoline or other flammable liquids. Do not run dry. Motor is NOT explosion-proof.
Features :
Product Specs :
Bronze pump head.
5.8 GPM output at 10 feet total head.
Continuous duty motor with thermal overload protection.
8 foot power cord with grounded plug.
Convenient carrying handle.
Easy to service and maintain.
Will tolerate abrasive wear .
Handles hard and soft solids without clogging.
Non pulsating flow
Parts and Accessories for Jabsco model 18610-0271
Impeller :
Catalog # 7273-0001, Impeller, Neoprene
Price: $ 36.31
Shaft Seal :
Catalog # 18753-0384, Service Kit, Nitrile, with Impeller, O-Ring and Seal
Price: $ 36.52
Casing frozen or cracked ? New Pump Casing :
Catalog # 18645-0000, Body
Price: $ 106.99
Applications
These pumps are versatile, multipurpose units that fill in where more specialised and expensive units are not practical for the job in hand. Jabscos utility pumps are bronze, so retain that high quality found in the marine range. They are widely found in use at metalworking factories, agricultural facilities, waste water treatment works and building facility management companies. These units are portable and can be used anywhere across site from washdown to pump out applications. Industrial applications for this pump include Circulating and transferring, velocitymixing, pumping machine tool coolants, return spill, sump drainage, pharmaceuticals, soap, liquors, ink, dyes, alcohol, glycerine, brine and pumping water for cooling heliarc welding equipment. Farming applications Pumping water for stock, pumping water from shallow wells and cisterns. Marine applications Washdowns, utility dock side pump. Plumbing and home emergency use applications Pumping out flooded basements, cesspools, sumps, water heaters and water closets, drains and sinks, draining fishponds and small pools. Public utilities and municipalities applications Dewatering and draining meter boxes and excavations, dust control and sampling. Flow rate Nominal 6 US gallons/min.
