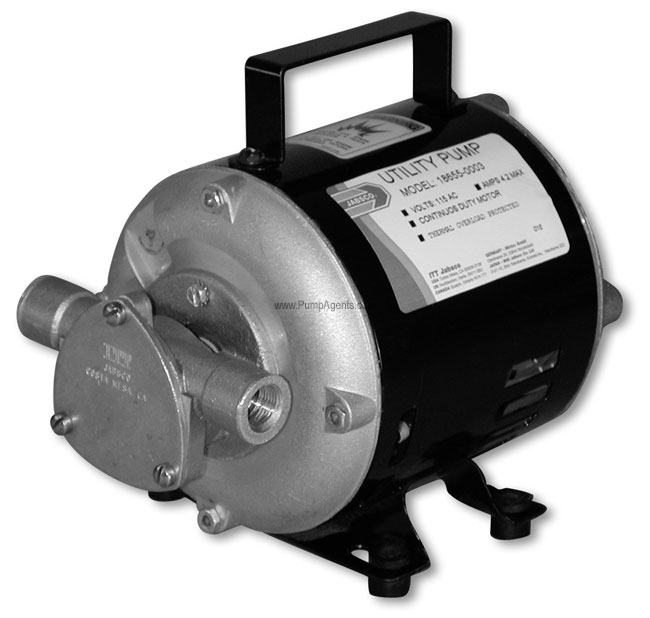

Jabsco # 18655-0001 Bronze Self-Priming Pump 1/6 HP
Jabsco # 18655-0001
Jabsco catalog # 18655-0001, Bronze Self-Priming Pump and Motor unit. Bronze Construction, with a Neoprene Impeller and Lip Type Seal. Pump is Close Coupled to a 1/6 Horsepower, ODP (Open Drip Proof) Motor. Ports are 3/8 Inch NPT Female.
Price : Contact Us
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 18655-0001 is a bronze Flexible Impeller pump with a Neoprene Impeller, Lip Type seal, 3/8 Inch NPT Female Ports, coupled to a 1/6 Horsepower, ODP, 60 HZ Motor, with a 8' Cord 3 Prong Grounded Plug. LIQUID TEMPERATURE RANGE: Neoprene Impeller: 45 degrees to 180 degrees F ( 7 degrees to 82 degrees C) . For general transfer pumping where self-priming, 3 gpm flow, debris tolerance and portable 115 VAC operation is desired.
Do not run dry. Impeller Depends on liquid pumped for lubrication. Dry Running will damage the impeller.
Features :
Product Specs :
Easy to service and maintain.
Will tolerate abrasive wear .
Handles hard and soft solids without clogging.
Non pulsating flow
Parts and Accessories for Jabsco model 18655-0001
Shaft Seal :
Catalog # 18753-0384, Service Kit, Nitrile, with Impeller, O-Ring and Seal
Price: $ 36.52
Applications
Widely used in Metalworking Factories, Agriculture and Horticulture, Waste and Water Treatment works, Many areas of manufacturing and production, Plumbing and home maintenance services Especially suited to Sumpemptying and cellar drainage, Machine tool coolant transfer, Cleaning and filtration, Washdown equipment, Transfer and recirculation. Other applications include INDUSTRIAL Circulating, transferring, velocitymixing, pumping machine tool coolants, sump drainage, soap, ink, dyes, alcohol, glycerine, brine and heliarc welding equipment cooling. FARMING Livestock watering, pumping water from shallow wells and cisterns. MARINE Washdown and utility dock side pumping. PLUMBING and HOME EMERGENCY USE Pumping out flooded basements, cesspools, sumps, water heaters and water closets, drains and sinks, draining fishponds and small pools. PUBLIC UTILITIES AND MUNICIPALITIES Dewatering and draining meter boxes and excavations, dust control and sampling.Flow rate Nominal 2.8 US gallons/min 10.6 Litres/min.
