Jabsco # 18670-0123 Commercial Duty DC Water Puppy
Jabsco # 18670-0123

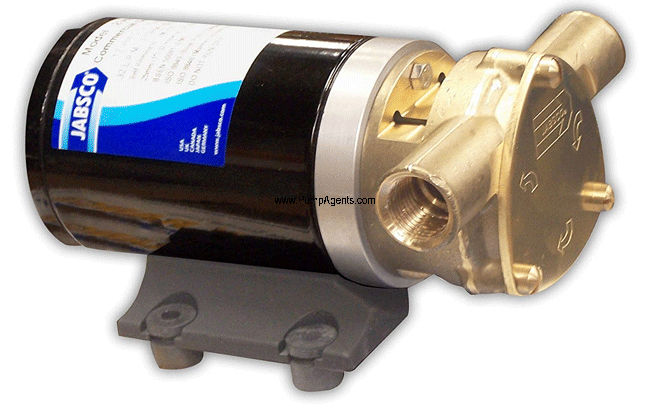

Jabsco catalog # 18670-0123, Commercial Duty DC Water Puppy and Motor unit. Bronze Construction, with a Nitrile Impeller and Lip Type Seal. Pump is Close Coupled to a 12 Volt DC Motor. Ports are 1/2 Inch NPT Internal and 1 Inch Hose Barb.
Price : $ 395.35
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 18670-0123 is a bronze Flexible Impeller pump with a Nitrile Impeller, Lip Type seal, 1/2 Inch NPT Internal and 1 Inch Hose Barb Ports, coupled to a 12 Volt DC Motor. This pump has a nominal flow rate of 8 GPM (30.4 LPM), and is self-priming from dry up to 6 feet (2m) and a lift to 20 feet (6m) when primed. Be sure suction lines are airtight or pump will not self-prime. This workhorse is designed for general transfer pumping where self-priming and debris tolerance are required. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components. The pump ports have external 1 Inch hose barb and internal 1/2 Inch pipe threads. Also provided are two male port adapters to allow the attachment of 3/4 Inch female garden hose fittings. The pump cannot run against a closed outlet such as encountered when using a garden hose type shut-off nozzle. Pressure for normal operation should not exceed 20 feet of head (8.7 psi). Temperature of pumped liquid may be in the range of 45 degrees - 180 degrees F (7 degrees - 82 degrees C).
For intermittent duty use only. Do not pump gasoline, solvents, or thinners with this pump.
Features :
Product Specs :
7.83 GPM output at 10' total head.
Bilge debris presents no problem to this bronze bodied, flexible impeller design.
Simple design means fewer wearing parts all user serviceable.
Complies with USCG 183.410 and ISO 8846 MARINE .
ISO 8849 MARINE .
Parts and Accessories for Jabsco model 18670-0123
Applications
This pump is a highflow, continuously rated bilge pump offering good discharge head. It can be used for bilge pumping, livewell circulation, washdown and general pumping requirements. For intermittent duty use only, motor may be reversed to empty bait tank. The Commercial Duty Water Puppy has 25 percent more flow than the standard model and a heavyduty motor. Oilresistant nitrile impeller is standard. The Nitrile impeller in this pump is good for oilbased products, and has a Temperature limit of 50 degrees to 180 degrees F. The pump must be mounted in a dry locationthe motor is not waterproof and must not be submerged. Selection of a cool ventilated location will generally extend pump motor life. The unit can be mounted in any desired position. It is best to mount so that water dripping from loose port connection will not wet the motor. The pump head may be rotated 180 degrees on the motor to change the direction of flow.
