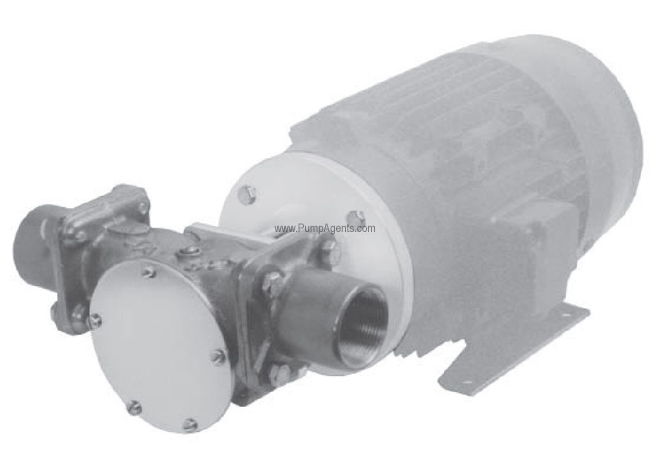

Jabsco # 22880-0033 Bronze Flexible Impeller Pump And Motor 2 HP
Jabsco # 22880-0033
Jabsco catalog # 22880-0033, Bronze Flexible Impeller Pump And Motor and Motor unit. Bronze Construction, with a Nitrile Impeller and Nitrile/Carbon/ceramic mechanical Seal. Pump is Close Coupled to a 2 Horsepower, 1100 RPM, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are Flanged.
Price : $ 1352.94
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 22880-0033 is a bronze Flexible Impeller pump with a Nitrile Impeller, Nitrile/Carbon/ceramic mechanical seal, Flanged Ports, coupled to a 2 Horsepower, 1100 RPM, 230/460 Volts, 3 Phase, TEFC Motor. This is a Pump and Motor unit with 50Hz and 60Hz interchangeability - 60Hz 230/460 Volts and 50Hz 200/400 Volts. There is a choice of 1-1/2 Inch BSP Threaded, 1-1/2 Inch NPT, and 2 Inch Hose Port adaptor kits to mount on the flange ports. Temperature range with Nitrile Impeller option is 10 degrees C to 90 degrees C. These pumps have unrivalled solids handling, and are able to handle soft solids, and even unintentional hard solids such as loose screws, weld material and fruit stones. This pump has an exceptionally high flow rate compared to other pump types of the same size. It fits into smaller spaces - simplifies installation and equipment design. These pumps have very few moving parts to wear or break and spare parts are low-priced and readily available. Spares are easy to fit and most unskilled users can change an impeller.
Do not pump gasoline, solvents, thinners or other flammable liquids.
Features :
Product Specs :
Flows up to 52.8 gal /minute at 1500 RPM
Self primes from dry up to 9.8 feet
Handles hard or soft solids
Non pulsating flow
Gentle pump action does not damage shear sensitive products
Easy to service and maintain
Inexpensive, versatile pump; easy to install
Marine-quality bronze and stainless-steel parts suitable for seawater
Parts and Accessories for Jabsco model 22880-0033
Impeller :
Catalog # 836-0003, Impeller, Nitrile
Price: $ 60.84
Applications
Widely used for Chemical processes, recirculation, filtration, Machinetool coolants, lubricants, sumpemptying, Agricultural, factory and Utility Company duties, Marine bilge pumping. Especially suited to Saltwater pumping, Mildly aggressive chemicals, Abrasives in suspension, Marine toilet waste pumpout. Typical Industrial Applications From water to the most difficult, e.g. transferring foaming solutions with entrained air or solids, such as soap, circulating abrasive and non abrasive slurries. Transferring inks, dyes, starches etc. Chemical Applications Circulating and transferring various chemicals such as ammonia, barium, copper sulphate, glycerine, nickel chloride, silver nitrate; various acids such as boric, carbonic, citric and photo processing solutions, widely used for polyelectrolyte.
