Jabsco # 23870-1200 Diesel Refuelling Pump
Jabsco # 23870-1200

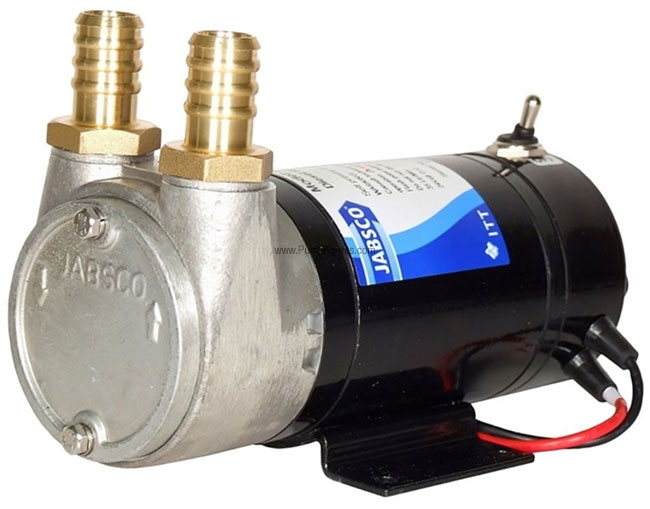

Jabsco catalog # 23870-1200, Diesel Refuelling Pump and Motor unit. Aluminium Construction. Pump is Close Coupled to a 12 Volt DC Motor. Ports are 3/4 Inch hose adaptors.
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 23870-1200 is a aluminium sliding vane diesel transfer pump with a Nitrile Lip Seal, 3/4 Inch hose adaptors Ports, coupled to a 12 Volt DC Motor. Not continuous duty rated. Duty is 25 mins. Designed for refuelling small sizes diesel powered vehicles [typical tank sizes up to 200 litres (50 U.S. gallons)] from drums. Suitable for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters. Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes (750 Saybolt Universal) viscosity.
Features :
Product Specs :
Faster refuelling - 35 litres/minute .
High head capability - 6 metres .
Self priming up to 2.8 metres .
Vibration tested.
IP55 protected motor.
Full range of installation accessories.
Parts and Accessories for Jabsco model 23870-1200
Applications
Flow rate 35 Litres/min 9.5 USgallons/min. Selfpriming from dry up to 2.4m 7.8ft. Temperature Range 30 degrees C to 40 degrees C 22 degrees F to 104 degrees F.
