Jabsco # 23920-9503 Run Dry Bronze Utility Puppy 2000
Jabsco # 23920-9503

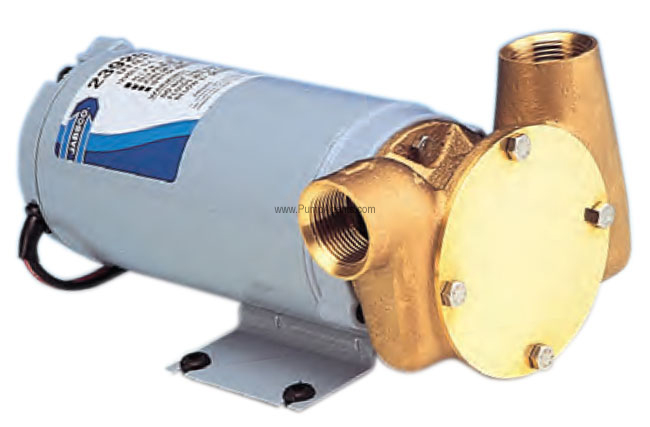

Jabsco catalog # 23920-9503, Run Dry Bronze Utility Puppy 2000 Pump and Motor unit. Bronze Construction, with a Nitrile Impeller and Lip type Seal. Pump is Close Coupled to a 24 Volt DC Motor. Ports are 3/4 Inch NPT Threaded.
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 23920-9503 is a bronze Flexible Impeller pump with a Nitrile Impeller, Lip type seal, 3/4 Inch NPT Threaded Ports, coupled to a 24 Volt DC Motor. This pump is rated for 8.33 GPM (32 LPM) output at 10 feet (3m) total head, and is self-priming up to 4 feet (1.2m) of vertical lift. The continuous rated Utility Puppy 2000 offers high flow for bilge, deck wash and general purpose use, and ten minutes dry running. The pump is designed to be powered from fully charged batteries or other DC supply with adequate amperage provision. Pump connections are 3/4 Inch NPT thread, with the pump being designed to operate with 1 Inch reinforced hose. The dry running feature means the pump is not reversible, the discharge being the vertical port. The Nitrile impeller supplied in pump is recommended for liquid temperatures of 50 degrees - 180 degrees F (10 degrees - 82.2 degrees C). Do not restrict the inlet pipework as these flexible impeller pumps can handle solids so strainers are not generally recommended. Hard and soft Solids handling should present little or no problem for the pump with solids size below approximately 6-7mm.
Features :
Product Specs :
Bronze pump head
Bilge debris presents no problem to this bronze bodied, flexible impeller design.
Compact design delivers high flow rates.
Continuous duty motor.
Will not airlock; continues to operate even when air passes through the system.
Will pump out until the last drop of media has gone.
Dry running for twenty minutes after initial use.
Simple design means fewer wearing parts all user serviceable.
Complies with USCG 183.410 and ISO 8846 MARINE .
ISO 8849 MARINE .
Parts and Accessories for Jabsco model 23920-9503
Impeller :
Catalog # 6303-0003, Impeller, Nitrile
Price: $ 26.10
Shaft Seal :
Catalog # SP2701-52, Body
Price: $ 9.63
Applications
The 23920 Series selfpriming Jabsco Flexible impeller pump is generally used for marine, domestic and industrial applications, where short duration over running without flow is a possibility. The ability to handle solids and robust construction suits marine/domestic waste discharge, aqueous industrial fluid transfer and ability to handle other fluids compatible with construction materials. This pump can be used for general transfer pumping where selfpriming, debris tolerance and portable DC operation is desired. It is deal for Bilge Pumping, Bait Tank, Wash Downs, and General Marine Service. Non marine uses for these pumps may include chemical processing, recirculation of aqueous media including coolants and sump emptying. The pump may be mounted in any position without loss of efficiency; however, it is suggested that the pump head be down if vertical mounting is desired. The rotation of the motor shaft determines the location of the pumps intake and discharge ports. No leaks or blockages should be in the system as inlet leaks will degrade selfpriming capability
