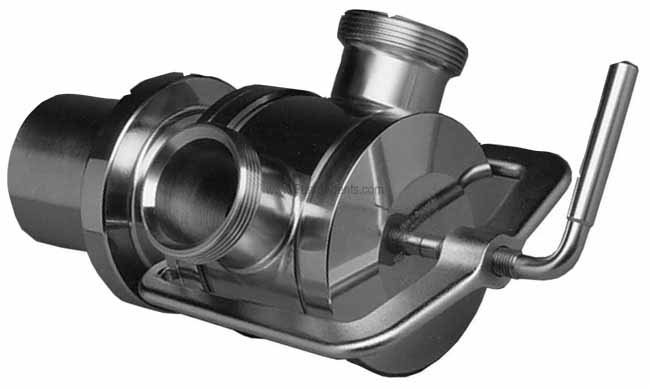

Jabsco # 23930-1115 Stainless Steel Bulkhead Mounted Pump

The Jabsco 23930-1115 is a 316 stainless steel Flexible Impeller pump with a 3A Food Grade Neoprene Impeller, Food Grade Nitrile/Carbon/Ceramic Mechanical Seal, 2-1/2 Inch Tri-Clamp Ports, bare shafted pump only. These units are specifically designed for farm pick-up milk tanker trucks. This pump has a nominal flow rate of 185 GPM (700 LPM) at 1750 RPM, and is self-priming from dry up to 7.8 feet (2.4m) and primes at low or high speeds. Intake/Suction lines must be airtight to prevent product foaming and assure self-priming. Use noncollapsible hose. These pumps feature excellent self-priming, faster loading, more accurate metering, smooth, steady flow, long reliable life, easy servicing and hygienic design which make this pump excellent for transport service. Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Refer to dimensional drawing. Pump is normally assembled at factory for clockwise rotation looking at end cover. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components. The temperature limits for the sanitary Neoprene impeller in this pump is are 45 degrees F to 150 degrees F ( 7 degrees C to 65 degrees C).
