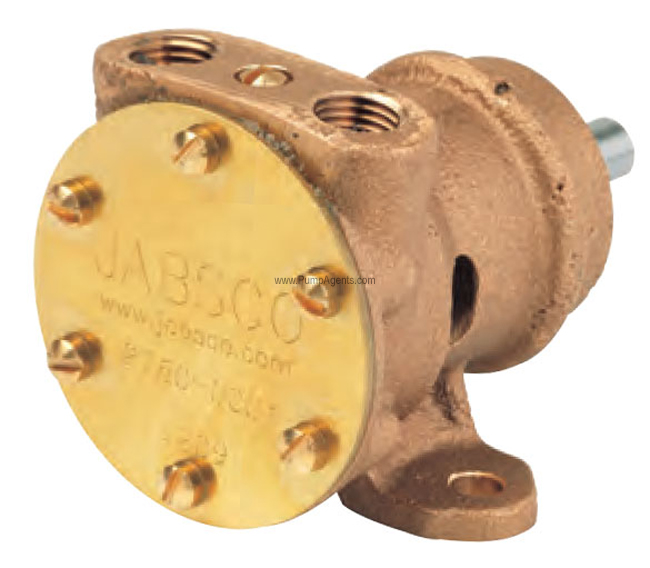

Jabsco # 2760-0003 Bronze Pedestal Pump
Jabsco # 2760-0003
Jabsco catalog # 2760-0003, Bronze Pedestal Pump, bare shafted pedestal pump end only without a Motor. Bronze Construction, with a Nitrile Impeller and Lip Type Seal. Ports are 1/4 Inch NPT Internal.
Price : $ 483.54
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 2760-0003 is a bronze Flexible Impeller pump with a Nitrile Impeller, Lip Type seal, 1/4 Inch NPT Internal Ports, bare shafted pedestal pump end only without a Motor. SELF-PRIMING - Primes at low or high speeds. For vertical dry suction lift of 10 feet, a minimum of 800 RPM is required. Pump will produce suction lift up to 22 feet when wetted. TEMPERATURES - Nitrile Impeller 50 degrees118 degrees F (10 degrees82 degrees C). These Pedestal Pumps can be long coupled to a motor, driven through a gearbox or by a belt. They can generate higher pressures and can be easily run at low speeds when pumping higher-viscosity liquids.
RUNNING DRY - Unit depends on liquid pumped for lubrication. Do not run dry for more than 30 seconds. Lack of liquid will damage the impeller.
Features :
Product Specs :
Self-priming even when dry
Will extract the last few litres, minimising waste - the original Inchliquid vacuum cleaner Inch
No retained liquid to degrade or contaminate the next batch
Excellent suction and vacuum-pulling ability over 600 mbar
Pulsation-free flow
Inexpensive, versatile pump; easy to install
Marine-quality bronze and stainless-steel parts
Replaceable wearplates, endcovers and cams
Will tolerate abrasive wear .
Handles hard and soft solids without clogging.
Can pump in either direction.
Will not airlock.
Parts and Accessories for Jabsco model 2760-0003
Seal Kit :
Catalog # 90023-0003, Service Kit with Nitrile Impeller, Impeller Screw, Gasket and seal
Price: $ 61.83
Impeller :
Catalog # 4528-0003, Impeller - Nitrile
Price: $ 43.17
Shaft Seal :
Catalog # 92700-0110, Lip Seal
Price: $ 19.63
Applications
Widely used for Marine diesel engine rawwater cooling, Marine bilge pumping, deck and anchor wash. Non marine uses for these pumps may include chemical processing, recirculation of aqueous media including coolants and sump emptying. Circulating and transferring, Velocitymixing, Pumping machine tool coolants, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Various acids, Tanning liquors, Glycerine, Brine.
INSTALLATION Pump may be mounted in any position. Intake and discharge ports are determined by the direction of shaft rotation. Before installing, turn the pump shaft in the direction of the operating rotation, DRIVE Belt or Direct with flexible coupling. BELT DRIVE Overtight belt load will reduce bearing life. DIRECT DRIVE Clearance should be left between drive shaft and pump shaft when installing coupling. Always mount and align pump and drive shaft before tightening the coupling set screw
Flow rate Nominal 20 Litres/min at 1500rpm. Selfpriming from dry up to 1.5m.
