Jabsco # 30520-5004 Epoxy Plastic Pump 1-1/2 HP
Jabsco # 30520-5004

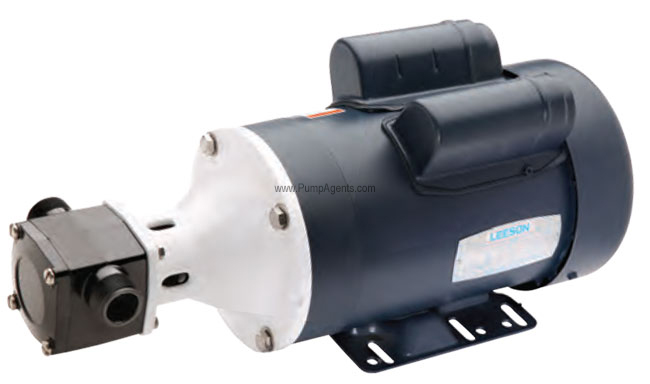

Jabsco catalog # 30520-5004, Epoxy Plastic Pump and Motor unit. Epoxy Plastic Construction, with a Viton Impeller and Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a 1-1/2 Horsepower, 1740 RPM, 115/230 Volts, Single Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are 1 Inch NPT Internal.
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 30520-5004 is an epoxy plastic Flexible Impeller pump with a Viton Impeller, Carbon/Ceramic Mechanical Seal, 1 Inch NPT Internal Ports, coupled to a 1-1/2 Horsepower, 1740 RPM, 115/230 Volts, 1 Phase, TEFC, 60HZ Motor. Use these pumps where single or variable speed operation and Plastic Epoxy material is desirable. Self-priming, 22 gpm flow, debris tolerant. These pumps are self-priming and will prime at low or high speeds. For a vertical dry suction lift of 10 feet (3m) a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet (6.7m) when wet. Be sure suction lines are airtight or pump will not self-prime. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller. The operating temperature limits of the pump depend on the impeller compound. The following ranges apply for Viton impellers : 60 degrees F to 180 degrees F (15 degrees C to 82 degrees C). A Viton/FKM impeller is good for hydrocarbons and most solvents. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Pump is normally assembled at factory for clockwise rotation (looking at end cover).
Motor is not explosion proof. Do not run dry.
Features :
Product Specs :
Gentle, low-shear action for delicate products.
Easy to service and maintain.
Handles hard and soft solids without clogging.
Capable of transferring abrasive laden or air entrained liquids
Able to transfer fluids with solids
Compact size
Non pulsating flow.
Immediate self priming
Handling a wide viscosity range
Operating equally well at low and high speeds
Can drain even the last few ounces of liquid from a container
Parts and Accessories for Jabsco model 30520-5004
Impeller :
Catalog # 14282-0004, Impeller, Standard Pressure - Viton
Price: $ 152.17
Shaft Seal :
Catalog # 18753-0246, Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat
Price: $ 404.88
Applications
INDUSTRIAL Circulating and transferring corrosive liquids. Returning spilled liquids to process. Transferring foaming solutions with entrained air, such as soaps and detergents. Sampling and pilot plant installations. Handles pure solutions, acids, alkalies, photo chemicals, dyes, detergents, waxes, gels, solutions with suspended solids and emulsions. METAL PLATING Filtration of plating solutions. Filling and emptying vats. Adding chemicals for Ph balance. PHARMACEUTICAL Processing lab solutions, medicines, lotions and preparations. Filtering pharmaceutical solutions. AGRICULTURAL Transferring liquid fertilizers, herbicides and pesticides. Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pumps intake and discharge ports. Pump is normally assembled at factory for clockwise rotation. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply Viton 60 degrees to 180 degreesF 15 degrees to 82 degreesC.
