Jabsco # 30530-4103 Stainless Steel Pump 5 HP
Jabsco # 30530-4103

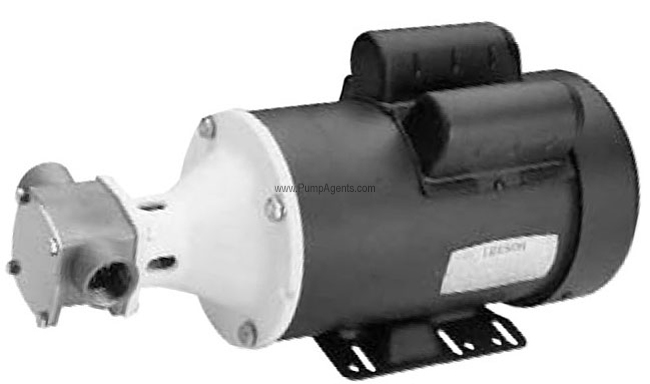

Jabsco catalog # 30530-4103, Stainless Steel Pump and Motor unit. 316 Stainless Steel Construction, with a Nitrile Impeller and Tungsten Carbide Mechanical Seal. Pump is Close Coupled to a 5 Horsepower, 1750 RPM, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are 1-1/2 Inch NPT Internal.
Price : $ 6045.20
Product Information :
Parts Page (click here)
Product Manual PDF (view)
The Jabsco 30530-4103 is a 316 stainless steel Flexible Impeller pump with a Nitrile Impeller, Tungsten Carbide Mechanical Seal, 1-1/2 Inch NPT Internal Ports, coupled to a 5 Horsepower, 1750 RPM, 230/460 Volts, 3 Phase, TEFC, 60 HZ Motor. This pump can be used where single or variable speed operation and 316 stainless steel material are desirable. Self-priming, 50 GPM (189 LPM) flow and debris-tolerant. The Nitrile impeller in this pump is good for oil-based products. This pump has a vertical dry suction lift of up to 10 feet with the Nitrile impeller, and will produce suction lift up to 22 feet when wetted. Be sure suction lines are airtight or pump will not self-prime. Temperature limits for Nitrile impellers are 50 degrees to 180 degrees F (10 degrees to 82 degrees C).
Stainless Steel flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained liquids. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscosity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. Stainless Steel flexible impeller pumps have the design features and materials suitable for pumping Corrosive chemicals, alcohols and solutions, Inks, dyes, paints and pigments, Viscous adhesives, thickeners and raw materials.
Do not pump gasoline or other flammable liquids. Motor is not explosion-proof. Do not run dry.
Features :
Product Specs :
Gentle, low-shear action for delicate products.
Type 316 stainless steel body, cover and shaft.
Easy to service and maintain.
Handles hard and soft solids without clogging.
Non pulsating flow.
Immediate self priming.
Handling a wide viscosity range.
Operating equally well at low and high speeds.
Capable of transferring abrasive laden or air entrained liquids.
Able to transfer fluids with solids.
Compact size.
Can drain even the last few ounces of liquid from a container.
Servicing and clean out is a simple operation.
Parts and Accessories for Jabsco model 30530-4103
Impeller :
Catalog # 14346-0003, Impeller, Standard Pressure - Nitrile
Price: $ 130.51
Shaft Seal :
Catalog # 18753-0251, Mechanical Seal, Nitrile/Tungsten Carbide, less Seal Seat
Price: $ 844.60
Casing frozen or cracked ? New Pump Casing :
Catalog # 18753-0191, Pump Body, Stainless Steel
Price: $ 1068.09
Applications
Industrial applications for this pump include Circulating and transferring, velocitymixing, pumping machine tool coolants, spill return, sump drainage, chemicals, pharmaceuticals, soap, liquors, ink, dyes, alcohol, dilute acids, tanning liquors, glycerine, brine, etc. Pharmaceutical applications for this pump include Processing lab solutions, medicines, lotions and preparations. Filtering pharmaceutical solutions, Filling line supply pump. Paper Processing applications for this pump include Transferring and applying starches, sizes, etc. Circulating and processing wood pulp slurries. Food, Beverage and Dairy applications for this pump include Transfer brines, vinegar, syrups during processing, liquids containing solids in suspension such as chopped tomatoes, nuts, etc. Removal of distillery wort and brewery slop. Processing viscous materials such as peanut butter, mayonnaise, ketchup, honey, etc. Pumping whiskey, wine, rums, juices and ciders. Agricultural applications for this pump include Transferring liquid fertilizers, herbicides and pesticides.
