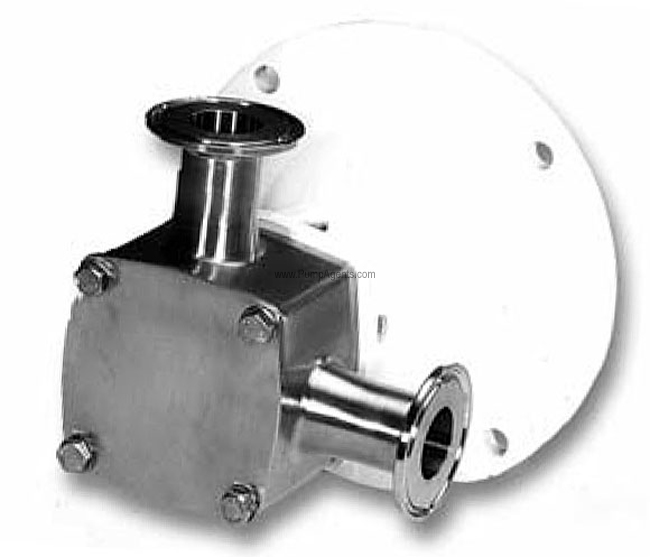

Jabsco # 30550-2005 Sanitary Stainless Steel Pump End Only
Jabsco # 30550-2005
Jabsco catalog # 30550-2005, Sanitary Stainless Steel Pump End Only, replacement pump end only without a motor. 316 Stainless Steel Construction, with a Neoprene Impeller and Carbon/Ceramic/Nitrile Mechanical Seal. Ports are 1 Inch ACME Threads with Bevel Seat.
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 30550-2005 is a 316 stainless steel Flexible Impeller pump with a Neoprene Impeller, Carbon/Ceramic/Nitrile Mechanical Seal, 1 Inch ACME Threaded Ports with Bevel Seat, replacement pump end only without a Motor. SELF-PRIMING Primes at low or high speeds. For vertical dry suction lift of 6 feet (EPDM impeller), a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: EPDM impeller - 45 degrees to 185 degrees F (7 degrees to 85 degrees C). These Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Jabsco Hygienic Flexible Impeller Pumps handle low and high-viscosity liquids, gels and pastes and can pass suspended soft and hard solids with minimal damage. Virtually any liquid with viscousity up to 20,000 centipoise can be pumped as long as there is chemical compatibility with the pump materials. The output flow is smooth, steady and totally pulsation-free and their gentle pumping action will not breakdown shear-sensitive or fragile liquids. Designed to be cleaned in place or easily strip-cleaned, Jabsco flexible impeller pumps frequently offer a more suitable and cost-effective alternative to many other pump types.
Unit depends on liquid pumped for lubrication. Do not run dry for more than 30 seconds. Lack of liquid will damage the impeller.
Features :
Product Specs :
Flow rate: Nominal 10.1 GPM 38.2 LPM) at 1750 rpm
Self-priming from dry up to 5m
Immediate self priming
Pressure up to 45 psi
Handles soft solids - max. .31 inch, 8 mm diameter
Certified to US 3A Standard 02-11
Clean-ln-Place or easy strip dean
Handles viscosities up to 20,000 centiPoise
Minimal shear to thixotropic fluids
Easy to service and maintain
Able to transfer fluids with solids
Compact size
Pumps in either direction and can be mounted in any orientation
Handling a wide viscosity range
Operating equally well at low and high speeds
Capable of transferring abrasive laden or air entrained liquids
Parts and Accessories for Jabsco model 30550-2005
Impeller :
Catalog # 7614-0005, Impeller, Standard Pressure - Neoprene
Price: $ 119.57
Shaft Seal :
Catalog # 18753-0357, Mechanical Seal, Nitrile/Carbon/Ceramic
Price: $ 276.21
Applications
Pumping of food pastes, sauces, dough, and other high viscosity media. High viscosity products can be moved by these pumps over large distances with a significant starting head. Cosmetics, toothpastes, shampoos, soaps and pharmaceuticals are also pumped by flexible impeller pumps. Minimal shear on the product is exerted, making it ideal for shear sensitive beauty products. If the product is thixotropic, the shear rate will not cause additional structure build up. The beverage industry also uses flexible impeller pumps. The application areas are; wines, beers, soft drinks, fruit juices and syrups. The flexible impeller pump is capable of passing whole fruit berries through the pump without causing damage. This is due to its unique mode of operation; the solid particle can enter the SPACEbetween two impeller blades and be passed out the other side without having suffered any damaging effects. Typical Applications DAIRY Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter. BEVERAGE Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump. INSTALLATION Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Pump is normally assembled at factory for clockwise rotation looking at end cover.
