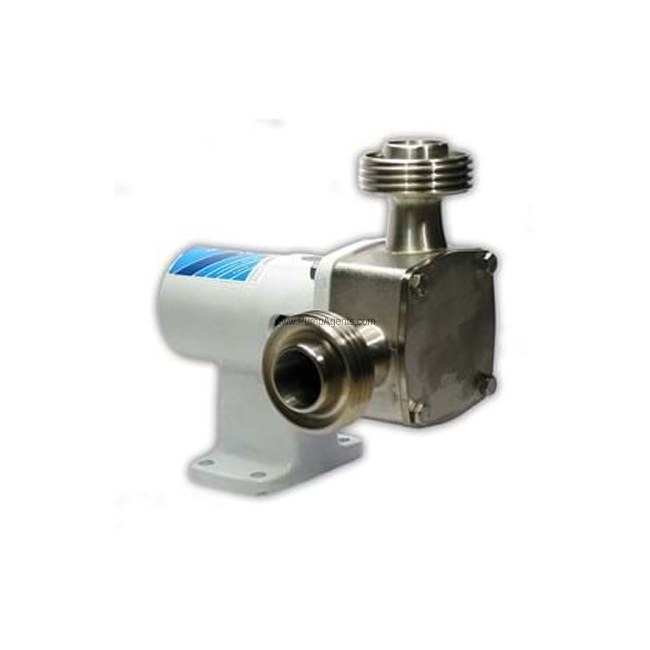

Jabsco catalog # 30560-1105, Hygienic Flexible Impeller Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a Neoprene Standard Pressure Impeller and Nitrile/Tungsten Carbide Mechanical Seal. Ports are 1 Inch Sanitary Clamp.
Price : $ 4933.26
The Jabsco 30560-1105 is a 316 Stainless Steel Flexible Impeller Pump with a Neoprene Standard Pressure Impeller, Nitrile/Tungsten Carbide Mechanical Seal, 1 Inch Sanitary Clamp Ports, on a Bearing Pedestal without a motor. These Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-en-trained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscosity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. These pumps offer unique capabilities which are either not available or costly to acquire with other pumps. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: Neoprene - 45 degrees to 150 degrees F (7 degrees to 65 degrees C)
Do NOT pump gasoline, solvents, thinners or other flammable liquids.
Gentle, low-shear action for delicate products.
Type 316 stainless steel body, cover and shaft.
All materials per FDA standards.
3A and USDA listed.
Sanitary design external shaft mechanical seal.
Immediate self priming
Handling a wide viscosity range
Operating equally well at low and high speeds
Capable of transferring abrasive laden or air entrained liquids
Able to transfer fluids with solids
Compact size
Pumps in either direction and can be mounted in any orientation
Can drain even the last few ounces of liquid from a container
Impeller :
Catalog # 8981-0005, Impeller, Neoprene
Price: $ 136.96
Shaft Seal :
Catalog # 18753-0247, Mechanical Seal, Tungsten Carbide - Nitrile
Price: $ 514.27
Casing frozen or cracked ? New Pump Casing :
Catalog # 18753-0359, Body, Stainless Steel, 1 Inch Clamp Ports
Price: $ 1362.00
Other Parts :
Catalog # 18753-0263, O-Ring, Nitrile
Price: $ 9.41
Hygienic flexible impeller pumps have the design features and materials suitable for pumping food products, cosmetics and pharmaceuticals.
