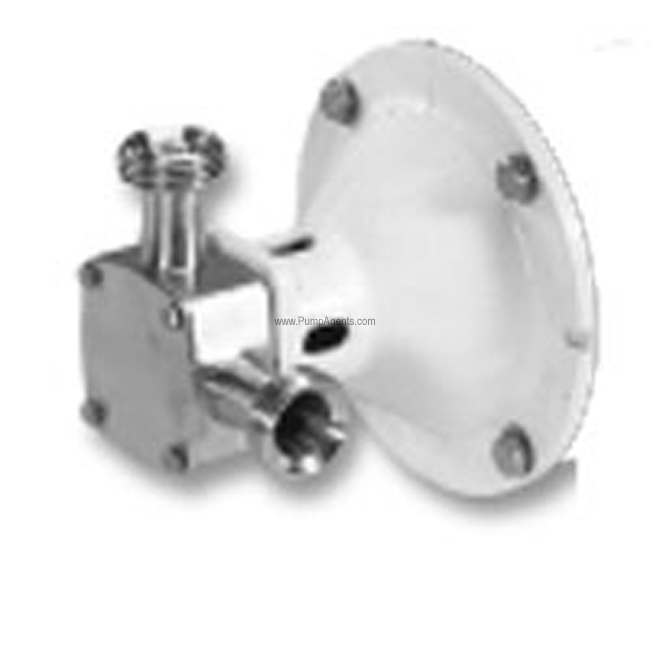

Jabsco # 30570-2002 Pump End only - Stainless Steel w/ EPDM Impeller
Jabsco # 30570-2002
Jabsco catalog # 30570-2002, Stainless Steel Flexible Impeller Pump, replacement pump end only without a motor. 316 Stainless Steel Construction, with an EPDM Impeller and Food grade Nitrile, Carbon/Ceramic Mechanical Seal. Ports are 1-1/2 Inch ACME Threads with Bevel Seat.
Price : $ 5019.11
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 30570-2002 is a 316 Stainless Steel Hygienic Flexible Impeller Pump with an EPDM Impeller, Food grade Nitrile/Carbon/Ceramic Mechanical Seal, 1-1/2 Inch ACME Threaded Ports with Bevel Seat, replacement pump end only without a Motor. These Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscousity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. These pumps offer unique capabilities which are either not available or costly to acquire with other pumps. SELF-PRIMING - Primes at low or high speeds. For vertical dry suction lift of 10 feet, a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: EPDM 45 degrees to 185 degrees F (7 degrees to 85 degrees C).
Do NOT pump gasoline, solvents, thinners or other flammable liquids.
Features :
Product Specs :
Gentle, low-shear action for delicate products.
Type 316 stainless steel body, cover and shaft.
All materials per FDA standards.
3A and USDA listed.
Sanitary design external shaft mechanical seal.
Immediate self priming
Handling a wide viscosity range
Operating equally well at low and high speeds
Capable of transferring abrasive laden or air entrained liquids
Able to transfer fluids with solids
Compact size
Pumps in either direction and can be mounted in any orientation
Can drain even the last few ounces of liquid from a container
Parts and Accessories for Jabsco model 30570-2002
Impeller :
Catalog # 14346-0002, Impeller, Standard Pressure - EPDM
Price: $ 200.06
Casing frozen or cracked ? New Pump Casing :
Catalog # 18753-0366, Body, Stainless Steel, 1-1/2 Inch ACME Threaded Ports with Bevel Seat
Price: $ 1975.69
Applications
These flexible impeller pumps have the design features and materials suitable for pumping food products, cosmetics and pharmaceuticals. DAIRY Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter.< BEVERAGE Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump.
