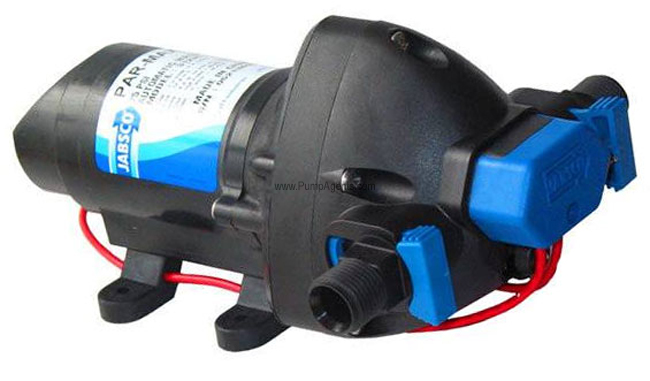

Jabsco # 31395-0092 Freshwater Delivery Pump

The Jabsco 31395-0092 is a Polypropylene ParMax HD3 series Freshwater Delivery Pump, rated up to 3 GPM, 60 PSI shutoff, with standard size Snap-In Port fittings, and 1/2 inch Straight Hosebarb fittings, coupled to a 12 Volt DC Motor, and is now replaced by the new version pump model # Q301J-118S-3A. This pump is now replaced by a new version updated and improved Jabsco freshwater supply pump, designed to provide years of satisfactory service in applications both large and small. The new version HD (Heavy Duty) model includes a slightly wider diameter motor with a powder coated shell, a co-molded diaphragm technology for long life and durability, cast aluminum endbells and lower housing to improve pressure capability and life. The Pumphead and upper housing material are Glass fiber reinforced polypropylene, with a co-molded TPV Diaphragm, and EPDM Check valves. This pump has an integrated, sealed pressure switch for on-demand operation, with a shut-off pressure of 60 PSI. It is also equipped with an integrated bypass module to reduce cycling and provide smoother flow. The motor is a permanent magnet brushed type, with a TENV (Totally Enclosed non-Ventilated) enclosure, with ingress protection to IPX6, and has vibration dampening mounting feet. This pump has an efficient and quiet operation. A plastic housing protects the motor from corrosion. This pump has a Self-priming capability of 7 feet which allows for installation versatility, and the pump can run dry without damage. This pump provides exceptional performance in an economical footprint. The maximum inlet pressure is 30 PSI. The maximum fluid temperature range for this pump is 32 degrees F to 140 degrees F (0 degrees C to 60 degrees C). NOTE : The pump is not submersible. IMPORTANT : Do not use motor pump units for pumping gasoline or other flammable liquids.
