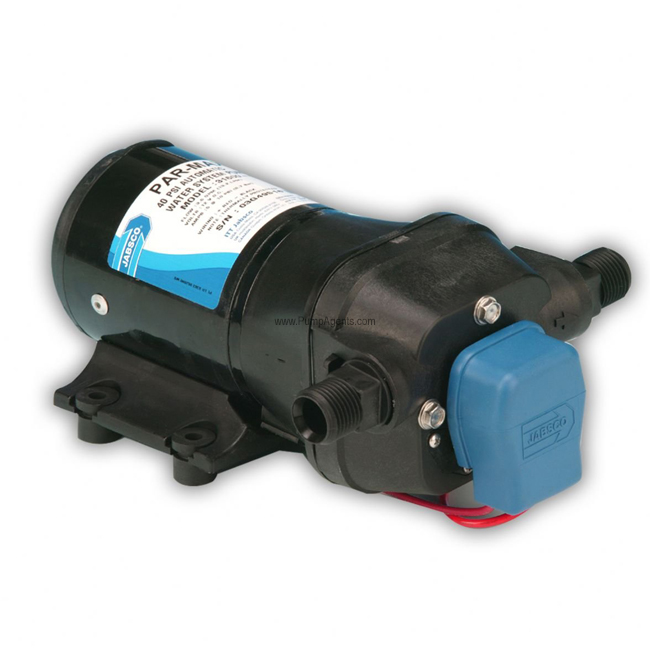

Jabsco # 31595-0294 PAR-MAX 2 Water Pump 2.8 GPM - 24 Volt DC

Jabsco Pump 31595-0294

Jabsco # 31595-0294

Jabsco catalog # 31595-0294, PAR-MAX 2 Pump w/ 12 Volt DC Motor, 10 PSI On - 20 PSI Off

Click Here for PARTS



Product Information :

31595-0294 Parts Page Parts Page (click here)

31595-0294 information Product Manual PDF (view)

Features :

Pump Body:
Glass Filled Polypropylene
Shaft Seal:
Diaphragm made of Santoprene, Valves made of EPDM
Port Size:
1/2" (13 mm) Hose and 1/2" (13 mm) Threaded (QEST Type)
Motor / Amp Draw:
24 VDC Permanent Magnet with Thermal Overload Protection, pump has standard Pressure switch (10 PSI on/20 PSI off)

Parts and Accessories for Jabsco model 31595-0294

Pump less Motor / Replacement Pumphead :

Catalog # 18914-6225, Pumphead

Price: $ 124.95

Major Overhaul Kit / Rebuild Kit :

Catalog # 18920-9042, Service Kit For 31595-0092 and 31595-0094, includes Valve Kit, Diaphragm Kit, Lower Housing Kit & Slide Clips

Price: $ 102.37

Other Parts :

Catalog # 18916-0025, Pressure Sw 0292/94

Price: $ 39.47

Applications

• SelfPriming to 10 ft. 3 m • Runs Dry Without Damage • Smooth Flow • Four Piston, Diaphragm Pump • Powerful Motor with Thermal Overload Protection • Snapin Ports • Waterproof Coating 31630Series • Pressure Switch with Boot • Meets USCG Regulation 183.410 and EN ISO 8846 MARINE Ignition Protection • Meets EN 500811 Electromagnetic Compatibility

The PARMAX Automatic Water System Pump is designed for selfcontained boats and RVs with multiple fixture water systems. The system operates automatically. When a fixture is opened, the pump instantly begins operation to provide a smooth constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation.
