Jabsco # 31801-0092 Industrial Diaphragm Pump
Jabsco # 31801-0092

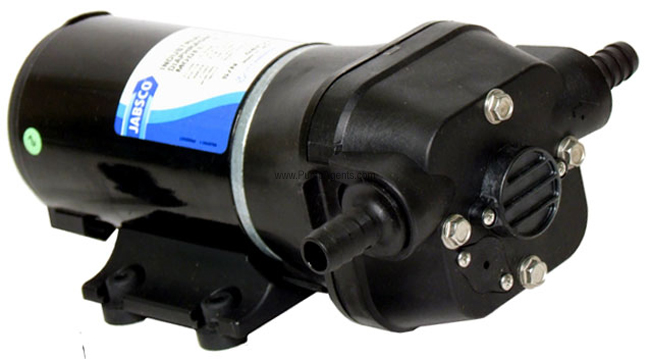

Jabsco catalog # 31801-0092, Industrial Diaphragm Pump and Motor unit. Glass Filled Polypropylene Construction, with a Santoprene Diaphragm and Viton Check Valves. Pump is Coupled to a 12 Volt DC Motor. Pressure Switch version. Pressure switch turns on at 20 PSI, turns off at 40 PSI. Ports are 1/2 Inch Hose Barb and 1/2 Inch NPT.
Price : $ 285.25
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 31801-0092 is a glass filled polypropylene diaphragm pump with a Santoprene Diaphragm, Viton Check Valves, 1/2 Inch Hose Barb and 1/2 Inch NPT Ports, coupled to a 12 Volt DC Motor, with a Pressure switch that turns on at 20 PSI, and turns off at 40 PSI. This pump is a Four-Chamber Diaphragm type pump with a flow rate of Flow to 4 GPM/15 LPM and it is Self-Priming to 10 feet (3m) when wet and 5 feet (1.5m) when dry. Be sure that the suction piping is airtight or pump will not self-prime. The motor on this pump is a Permanent Magnet type with Thermal Overload Protection. Ghe Motor and pump are designed for continuous operation in a 70 degrees F (21 degrees C) environment while pumping against 15 psi (1.05 bar) discharge pressure. Beyond these parameters, an intermitted duty cycle is recommended to maximize pump life. In normal operation, motor case will get hot. This pump features highly chemically resistant glass filled polypropylene pumps. It is sealless, self-priming, has low amp draw, compact size, and has run dry ability. The pump can run dry indefinitely without damage. The pumps are also easy to install with snap-in port adapters. he maximum recommended fluid temperature is 130 degrees F (54 degrees C.) Minimum recommended fluid temperature is 45 degrees F (7 degrees C). The maximum pumped fluid viscosity is 250 centipoise.
Do not pump gasoline, solvents, thinners or other flammable liquids.
Features :
Product Specs :
Self-Priming.
Can run dry without damage.
Flow to 4 GPM/15 LPM.
Thermal Overload Protected Motor.
Snap-in 1/2 Inch Dia. Port Adapters.
Parts and Accessories for Jabsco model 31801-0092
Other Parts :
Catalog # 18912-3040, Santoprene Diaphragm Kit
Price: $ 20.65
Applications
This pump is designed for fluid transfer applications for mild acids and bases, diesel fuel and light oils. Chemical feed pump. Recirculating pump in filtering systems. Water supply pump to spray bars of road rollers and other compaction equipment. Spray pump for herbicide and pesticide spraying equipment. This pump also provides excellent service in the following applications Water supply pump to the spray bars of road rollers and other compaction equipment, street sweepers, and truck mounted dust control systems. Superior equipment washdown results can be enjoyed with the 30801Series pumps. Supply pump for herbicide and pesticide sprayers and sprayboom equipment. NOTE Viton equipped models are not suitable for potable water applications. It can also be used for fluid transfer applications for mild acids and bases. As a Chemical feed pump. Washing fluid supply pump in parts washing systems. Machine coolant pump. Concrete saw lubricant supply pump. Recirculating pump in filtering systems.
