Jabsco # 32700-0094 Par-Max 5.0 Washdown Pump
Jabsco # 32700-0094

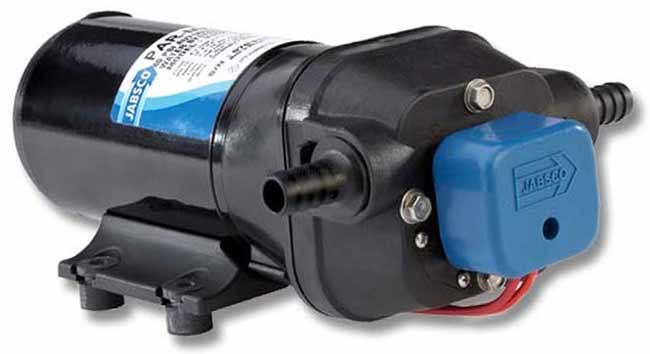

Jabsco catalog # 32700-0094, Par-Max 5 Washdown Pump and Motor unit. Polypropylene Construction. Pump is Coupled to a 24 Volt DC Motor.
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 32700-0094 is a polypropylene diaphragm pump coupled to a 24 Volt DC Motor. The PAR-MAX 5 pumps are self-priming and may be located above or below the fresh water supply in a dry location. To vertically mount these units, it is best to do so with the motor on top. This will prevent water dripping on motor in the event of a leak. Place pump on a solid surface and secure with the four mounting screws being careful not to compress the rubber grommets which act as shock absorbers. Installation site must be well vented and free of all flammable materials and fluids (fuel, oil, kerosene, etc) from area.
Motor case could get hot during extended operation.
Features :
Product Specs :
High pressure jet blasts mud and silt from anchor chain and decks.
Suitable for Use with Salt Water.
Corrosion Resistant.
Waterproof, Long Life sealed motors.
Dry running capability.
Thermal overload protection. automatically stops the motor if it overheats.
Parts and Accessories for Jabsco model 32700-0094
Major Overhaul Kit / Rebuild Kit :
Catalog # 18920-9043, Service Kit, with Valve Kit, Diaphragm Kit, Lower Housing Kit and Slide Clips
Price: $ 107.35
Applications
For many years, Jabsco PARMax washdown pumps have been the preferred system for cleaning marine vessels, making it an industry standard.
