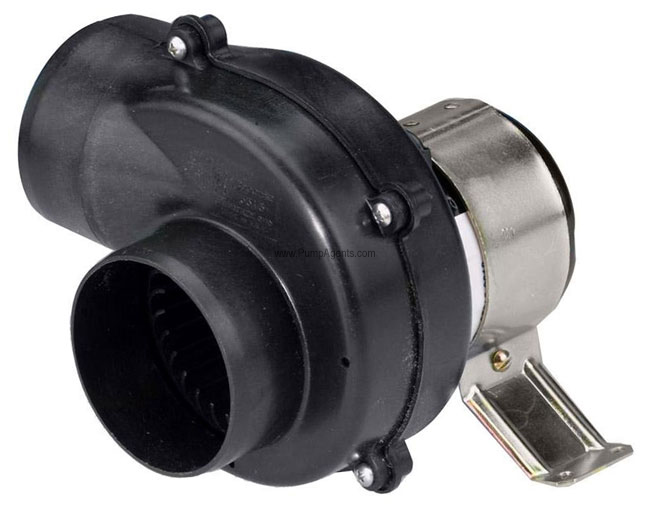

Jabsco # 35515-0010 Flexmount 3 Inch Blower
Jabsco # 35515-0010
Jabsco catalog # 35515-0010, Flexmount 3 Inch Blower. Blower is Coupled to a 12 Volt DC Motor.
Price : $ 117.55
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 35515-0010 is a flexmount 3 inch blower, coupled to a 12 Volt DC Motor. This Jabsco blower is primarily intended for intermittent duty cycles such as evacuating fuel vapors from bilge areas. If desired, they also may be used for other general air circulation applications with longer duty cycles. However, when doing so, it should be noted that the maximum motor life is approximately 1000 hours. Therefore, the blower should only be used for applications if this length of service is acceptable. Blower should be mounted away from extreme heat (more than 130 degrees F) to prevent distortion of blower wheel or housing. This Flexmount Blower is of a radial design, which gives the highest output in more complex installations with longer ducting lengths and/or multiple bends in the ducting. They are installed by attaching a mounting collar (supplied with the blower) around the motor to any convenient solid surface. They can be rotated inside the collar to allow the shortest ducting lengths and most convenient routings in confined spaces. Both ports are designed for slip-on flexible ducting connections.
Gasoline vapors can explode. Before starting engine, operate blower for 4 minutes and check engine compartment bilge for gasoline vapors.
Features :
Product Specs :
Tough Reinforced Plastic Housing
Universal Flexmount Bracket Permits Outlet to Face Any Direction
Slip-On Inlet and Outlet Ducting Connection
Efficient High Volume Air Flow
Low Current Draw
Corrosion-Resistant Materials Throughout
N.M.M.A. Type Accepted
Meets USCG Regulation 183.410 and ISO 8846 MARINE for Ignition Protection
Complies with ISO 9097 MARINE
Parts and Accessories for Jabsco model 35515-0010
Applications
Jabsco DC Blowers are designed to remove fumes from the engine compartments of gasoline powered boats prior to startup, and therefore conform to ISO 8846 MARINE and USCG Regulations for ignition protection. They are listed as N.M.M.A. type accepted and comply with ISO 9097 MARINE and are CE marked. AC models are not ignition protected. Jabsco Blowers can also be used for air intake or extraction in galleys, bilges, accommodation and head compartments. Blowers should not be installed close to sources of direct heat exceeding 130 degrees F. Mount blower on flat bulkhead surface in highest part of compartment free from spray or deck wash. Blower may be rotated in mounting bracket to facilitate the shortest route of ducting. Use a suitable discharge fitting so that static pressure of blower will not be affected by change in wind direction. Route inlet ducting with as few bends as possible to lower 1/3 of the bilge compartment where vapors are likely to accumulate. Be sure ducting is positioned below top of engine stringers but not so low as to become submerged in bilge water. Locate pickup to take advantage of natural air flow direction. Flexible ducting No. 349590100 is easy to cut and install. If installed as galley ventilator, blower should be mounted away from extreme heat. For exposed blower install, ventilator intake screen No. 347640000 provides a safe and attractive protected inlet.
