Jabsco # 35770-0094 Blower
Jabsco # 35770-0094

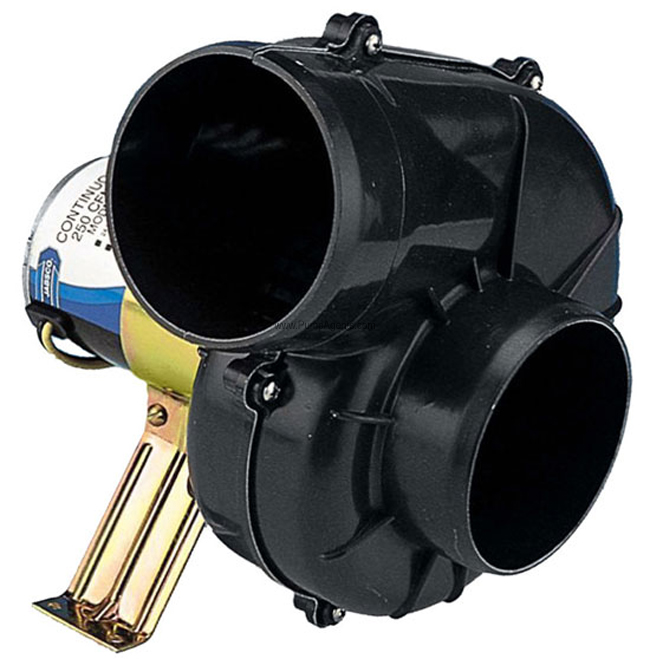

Jabsco catalog # 35770-0094, Heavy Duty Flexmount Blower. Blower is Coupled to a 24 Volt DC Motor. Rated for 250 CFM air flow.
Price : $ 296.41
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 35770-0094 is a heavy duty, continuous rated, flexmount blower, coupled to a 24 Volt DC Motor These powerful blowers are designed for use wherever continuous ventilation is required. A motor life of 5,000 hours is guaranteed for service in the toughest conditions. They provide outputs of 250 cfm (7.1m3/min). Flex mount blowers have both inlet and outlet ports designed for slip-on flexible duct connections. They are ideal when an in-line installation is preferred. The blower may be rotated in the mounting bracket to orient the discharge port in any direction. These Commercial-duty models are rated for continuous service.
Blowers should be mounted away from extreme heat to prevent distortion of blower wheel or housing.
Features :
Product Specs :
Extended Life 5,000 Hour Motor
Tough Reinforced Thermoset Plastic Housing
Mounts To Any Flat Surface
Slip-On Inlet Ducting Connection
Efficient High Volume Air Flow
Low-Current Draw
Corrosion-Resistant Materials Throughout
N.M.M.A. Type Accepted
Meets USCG Regulation 183.410 and ISO 8846 MARINE for Ignition Protection
Complies with ISO 9097 MARINE
Conforms with BSEN 50081-2 for Supression of Electro-magnetic interference
Parts and Accessories for Jabsco model 35770-0094
Applications
Mount blower on flat bulkhead surface in highest part of compartment free from spray or deck wash. Blower may be rotated in mounting bracket to facilitate the shortest route of ducting. Use a suitable discharge fitting so that static pressure of blower will not be affected by change in wind direction. Route inlet ducting with as few bends as possible to lower 1/3 of the bilge compartment where vapors are likely to accumulate. Be sure ducting is positioned below top of engine stringers but not so low as to become submerged in bilge water. Locate pickup to take advantage of natural air flow direction.
