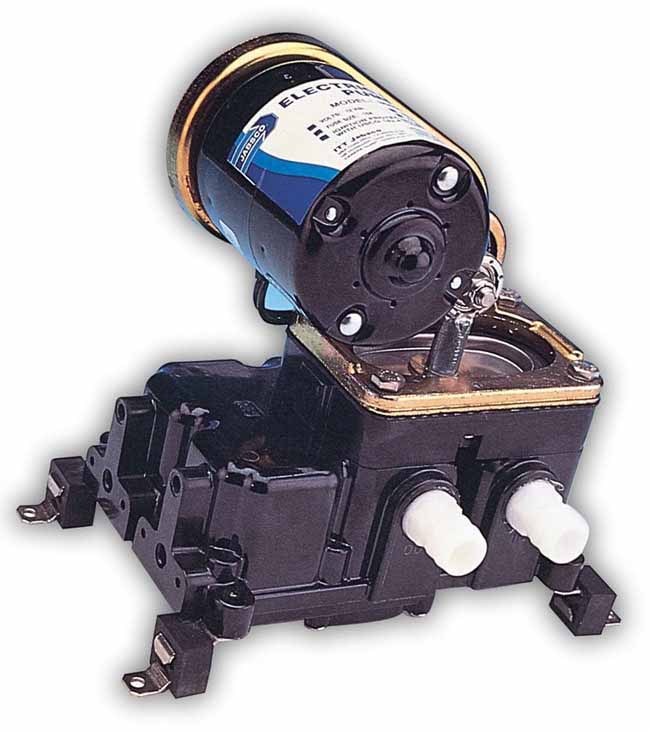

Jabsco # 36600-0031 Electric Bilge Pump
Jabsco # 36600-0031
Jabsco catalog # 36600-0031, Electric Bilge Pump and Motor unit. Pump is Coupled to a 115 Volt AC, Single Phase Motor. Ports are 3/4 Inch Hose Barb.
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 36600-0031 is a self-priming electric bilge diaphragm pump with 3/4 Inch Hose Barb Ports, coupled to a 115 Volt AC, 1 Phase, 60 HZ Motor. These Jabsco diaphragm bilge pumps are self-priming, so they can be mounted above and outside of harsh bilge environments. Because they are mounted remotely, the intake hose can be routed to the lowest point of the bilge regardless of space limitations. They are supplied with an in-line strainer to prevent damaging debris from entering pump. The reliable diaphragm design is not damaged by dry running.
Features :
Product Specs :
Self-Priming, allows mounting above wet bilges.
Diaphragm design allows extended dry running.
Quiet Operation.
Built-in Hydraulic Pulsation Dampener.
Permanently Lubricated Ball Bearings on Shaft and Connecting Rod.
Large Vibration Absorbing Pads.
Corrosion Resistant Materials Throughout for Sea Water Service.
Complete with Pumpgard strainer.
Complies with USCG 183.410 and ISO 8846 MARINE .
ISO 8849 MARINE .
Parts and Accessories for Jabsco model 36600-0031
Other Parts :
Catalog # 35630-1100, Base Assembly, with Valve Set, Ports, Pulsation Dampener, Large Pulsation Dampener, 2 Bottom Plates, Vibration Pads
Price: $ 308.55
Applications
These pumps are excellent for shallow bilge boats, where the water left behind by other types of pumps will slop from side to side. With the small size of inlet plumbing, they are very effective as bilge pumps, removing all but the last drops of water. These diaphragm pumps can be run dry, which removes the need to watch overboard outlets while the pump is running. The ability to selfprime means they can be mounted in an easily accessible, high and dry location to simplify installation and improve serviceability. These pumps are supplied complete with a Pumpgard strainer to protect the pumps from bilge debris. INSTALLATION Mount upright in a dry location on a solid surface. Adjust belt tension for 1/4 Inch play between pulleys. For intake and discharge use 3/4 Inch ID noncollapsible hose. Keep intake and discharge lines free of kinks and restrictions. Use the 3/4 Inch bilge inline stainer in the intake line from the bilge to protect pump from debris. Use a 3/4 Inch thruhull fitting for discharge.
