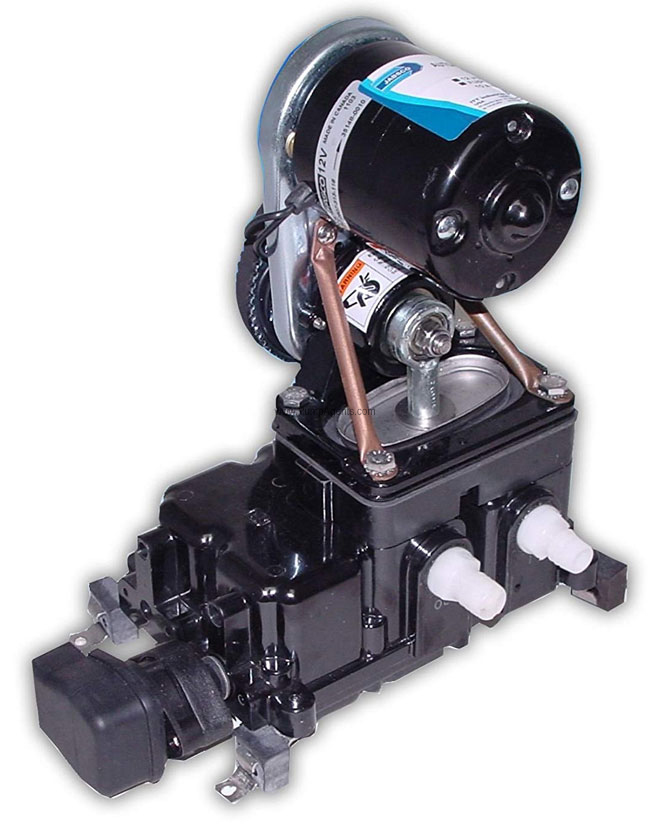

Jabsco # 36800-1000 Fresh Water Pump
Jabsco # 36800-1000
Jabsco catalog # 36800-1000, Fresh Water Pump and Motor unit. Pump is Coupled to a 12 Volts DC Motor. Pressure switch turns on at 20 PSI, turns off at 40 PSI. Ports are 1/2 Inch or 5/8 Inch ID Hose barb.
Price : $ 0.00
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 36800-1000 is a fresh water pump with 1/2 Inch or 5/8 Inch ID Hose barb Ports, 12 Volts DC Motor, with a Pressure switch that turns on at 20 PSI, and turns off at 40 PSI. Jabsco automatic water system pumps are designed for self contained recreational vehicles and pleasure boats with multiple-outlet water systems. The systems are automatic -when a faucet is opened, the pump instantly begins operation to provide a constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation. Model 36800 is suited for up to five outlet distribution systems. Model 36900 is recommended for large distribution systems where duty requires simultaneous operation for multiple faucets.
Features :
Product Specs :
Diaphragm Design Allows Dry Running
Built-in Discharge Check Valve
Quiet Operation
Built-in Hydraulic Pulsation Dampener
Large Vibration Absorbing Pads
Ports Available with Barb, Threads or Flare
Meets USCG Regulation 183.410
ISO 8846 MARINE for Ignition Protection
Parts and Accessories for Jabsco model 36800-1000
Applications
The Jabsco 368001000 diaphragm pumps are selfpriming. They may be located above or below the fresh water tank. The pump is equipped with vibration pads which are most effective when the pump is mounted upright on a solid surface.
