Jabsco37010-0097 Electric Toilet Conversion Base Kit - 24 Volt DC EMC

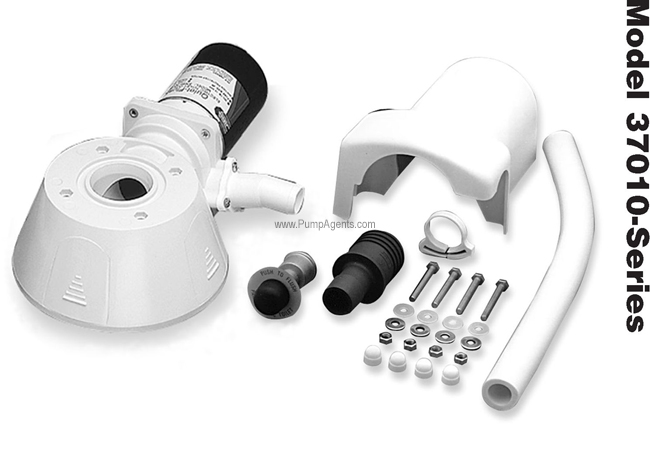

The Jabsco 37010-0097 is an Electric Toilet Conversion Base Kit with a 24 Volt DC EMC Motor. The 37010 series includes the complete motorized base assembly, bowl gasket, four bolts and washers for bowl, two 5/8 Inch to 3/4 Inch pump port adaptors, 3/4 Inch white hose, 1 Inch to 1-1/2 Inch discharge port adaptor, and momentary control switch. The 37010 series can be used to convert the Raritan PH or Compact, Wilcox-Crittenden Head Mate, Groco HC, Brydon No. 9127, 9128, or No. 59128 and virtually any other model marine toilet using the standard bowl configuration with a 3-3/4 Inch diameter bolt circle, 4 hole pattern in the base. Check the dimensional drawing to be sure the bowl will fit the flange dimensions as shown. The Jabsco electric toilet may be installed above or below the waterline. Flush pump is self-priming with a vertical lift up to 4 feet; discharge macerator pump can operate against a vertical head up to 4 feet. This model is Marked and complies with EN50081-1 for suppression of electro-magnetic interference.

The toilet inlet must not be connected to a pressurized water system. NOTE : Overall height after conversion may increase up to 1 Inch on some models, check to be sure adequate space is available if located under seats or bunks
