Jabsco # 37010-3092 Economy Electric Toilet Compact Bowl

Jabsco Pump 37010-3092

Jabsco # 37010-3092

Jabsco catalog # 37010-3092, Economy Electric Toilet. Toilet is 12 Volt DC. Compact Bowl Size.

Price : $ 685.24

Qty :

Same Day (5 in stock)

Click Here for PARTS



Product Information :

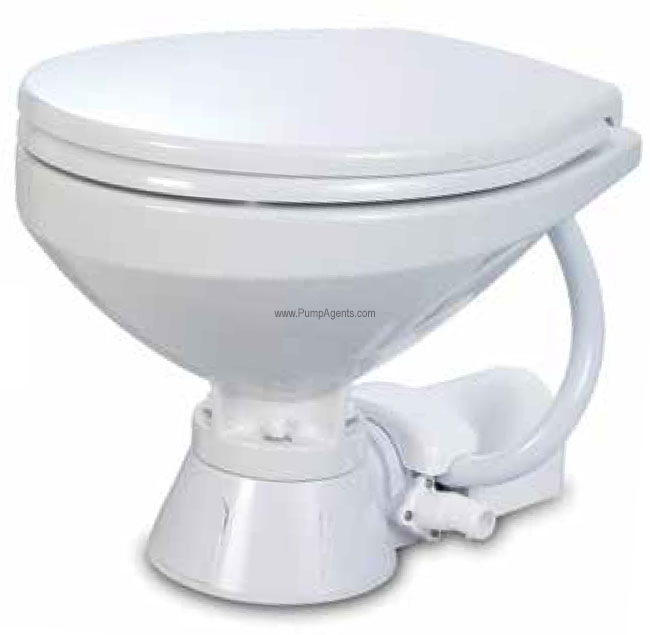

The Jabsco 37010-3092 is a Economy Electric Toilet, 12 Volt DC, Compact Bowl, with a White Vitreous China Bowl. The compact bowl of this toilet is used where space is at a premium. This traditional-style electric toilet is self-priming up to 4 feet (1.2m), and can discharge through a maximum vertical head of 4 feet (1.2m). It comes complete with a molded splashguard and a simple switch. The Jabsco electric toilet may be installed above or below the waterline. Flush pump is self-priming with a vertical lift up to 4 feet; discharge macerator pump can operate against a vertical head up to 4 feet (1.2m). Base assembly may be moved 90 degrees to accommodate connections and provide accessibility for servicing. Surface where toilet is mounted should be flat to prevent distortion of toilet base.

Do not connect the toilet to the vessels potable water for its source of supply. To do so can result in contamination of potable water supply. If fresh water is preferred for flushing, provide a separate fresh water tank to supply water to the toilet only.

Features :

Pump Body:
White Vitreous China Bowl

Product Specs :

Hygienic pure white vitreous china bowl for ease of cleaning.

Stylized, luxury wooden seat and cover with tough baked enamel coating.

Stainless steel and bronze fastenings for reliable salt water service.

Flushing pump self-priming up to 4' vertical lift.

May be mounted 3' below the waterline.

Equally suitable for overboard or holding tank discharge.

Built-in backflow preventer.

For installations fitted with vented loops, use a solenoid valve.

Complies with USCG 183.410 and ISO 8846 MARINE .


Parts and Accessories for Jabsco model 37010-3092


Other Parts :

Catalog # 37041-0010, Macerator Pump and Motor Assembly, 12 Volt DC

Price: $ 345.48

Qty :

Can Ship : Same Day (18 in stock)

Applications

All Jabsco toilets can be used on inland waterways, rivers, lakes or the sea, and can be installed above or below the waterline. However, attention must be paid to installation instructions for safety, and installations must meet with local regulations concerning overboard discharge. All Jabsco toilets are designed to discharge overboard or into holding tanks as necessary. The Jabsco electric marine toilet will provide years of troublefree service if properly used. It will handle waste and toilet tissue. It will NOT handle rags, sanitary napkins or hard solid objects.
