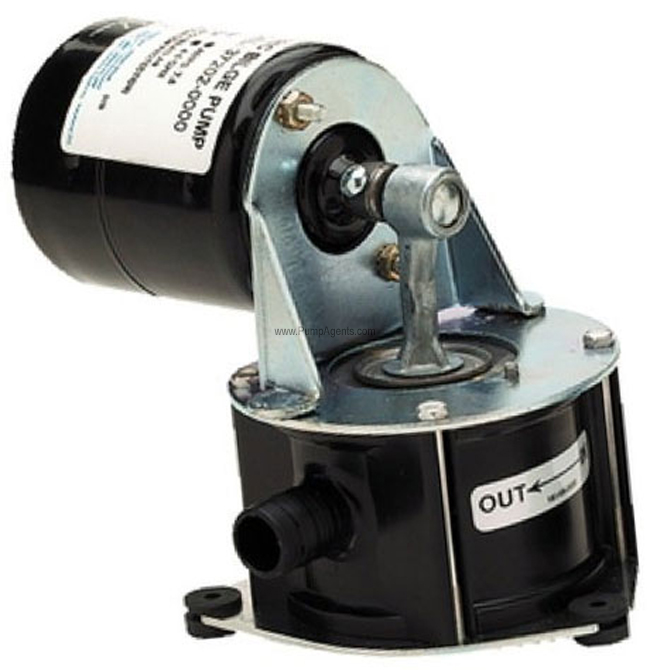

Jabsco # 37202-0000 Electric Bilge Pump

Jabsco Pump 37202-0000

Jabsco # 37202-0000

Jabsco catalog # 37202-0000, Electric Bilge Pump and Motor unit. Pump is Coupled to a 12 Volt DC Motor. Ports are 3/4 Inch Hose. *** NOTE : This catalog number has been updated by the manufacturer, and will ship as the Jabsco Pumps catalog # 37202-2012.

Click Here for PARTS



Product Information :

The Jabsco 37202-0000 is an electric bilge pump with 3/4 Inch Hose Ports, coupled to a 12 Volt DC Motor. This pump has an open flow of 4.5 GPM and a vertical dry suction lift of 7 feet. These pumps are excellent for shallow bilge boats, where the water left behind by other types of pumps will slop from side to side. With the small size of inlet plumbing, they are very effective as bilge pumps, removing all but the last drops of water. Diaphragm pumps can be run dry, which removes the need to watch overboard outlets while the pump is running. The ability to self-prime means they can be mounted in an easily accessible, high and dry location to simplify installation and improve serviceability.

Features :

Port Size:
Ports are 3/4 Inch Hose

Product Specs :

Pumpgard Inlet Strainer Supplied With Pump

Self-Priming

Diaphragm Design Allows Dry Running

Built-in Hydraulic Pulsation Dampener

Corrosion Resistant Materials Throughout for Sea Water Service

Meets USCG Electrical Regulation 183.410 and ISO 8846 Marine for Ignition Protection.

N.M.M.A. Type Accepted
