Jabsco # 3890-9011 Pedestal Pump
Jabsco # 3890-9011

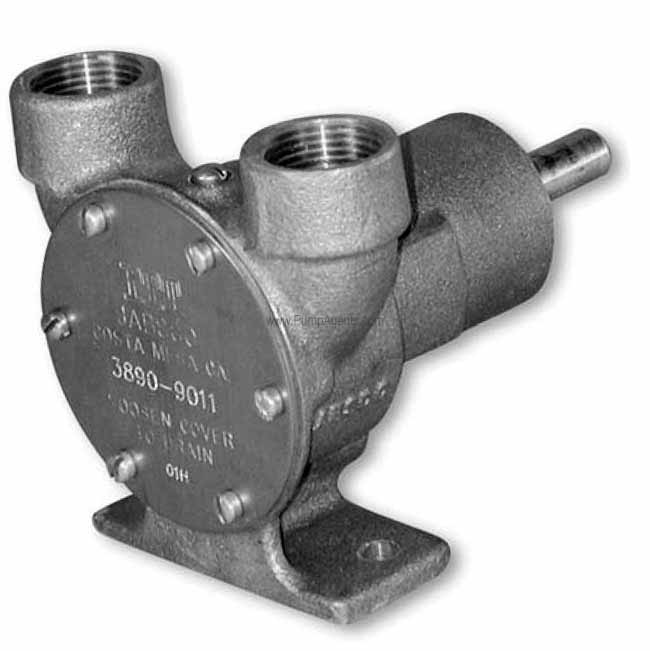

Jabsco catalog # 3890-9011, Bronze Flexible Impeller Pedestal Pump, bare shafted pedestal pump end only without a Motor. Bronze Construction, with a Neoprene Impeller and Carbon/Ceramic Mechanical Seal. Ports are 3/4 Inch NPT.
Price : $ 735.59
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 3890-9011 is a bronze Flexible Impeller pump with a Neoprene Impeller, Carbon/Ceramic Mechanical Seal, 3/4 Inch NPT Ports, bare shafted pedestal pump end only without a Motor. This pump has a nominal flow rate of 11.3 GPM (43 LPM) at 1750 rpm, and primes at low or high speeds. For a vertical dry suction lift of 10 feet (3.0mm), a minimum of 800 RPM is required. Pump will produce suction lift of up to 22 feet (6.7m) when wetted. Be sure suction lines are airtight or pump will not self-prime. The Neoprene impeller in this pump is good for water and general-purpose pumping. Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Pump is normally assembled at factory for clockwise rotation (looking at end cover). The Temperature limits for the Neoprene impeller in this pump is 45 degrees F to 180 degrees F ( 7 degrees C to 82 degrees C). This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components.
Features :
Product Specs :
11.3 GPM .
Mechanical face seal.
Double row ball bearing.
Self-priming up to 10' vertical lift.
Constructed from marine quality bronze and stainless steel.
Easy to service and maintain.
Will tolerate abrasive wear.
Handles hard and soft solids without clogging.
Can pump in either direction.
Will not airlock.
Parts and Accessories for Jabsco model 3890-9011
Applications
These flexible impeller pumps are selfpriming and therefore, are ideal for engine cooling, washdown, circulation and many general purpose onboard or dockside applications. The bronze bodies and stainless steel shafts are well suited for marine environments. They can operate in either rotational direction. Typical Applications for this pump are Marine Engine Cooling, Circulating, Pumping Bilges, Transfers, Washdowns, Sump Drainage, and Spill Returns. This Jabsco flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. It operates at low or high speeds can be mounted at any angle and pumps in either direction with equal efficiency.
