Jabsco # 4720-0001 Stainless Steel Utility Pump 1/3 HP
Jabsco # 4720-0001

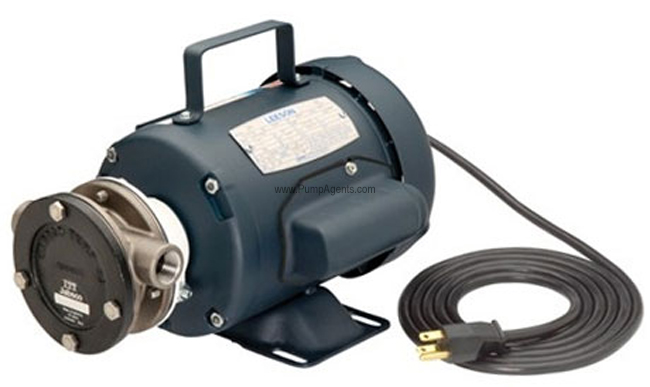

Jabsco catalog # 4720-0001, Stainless Steel Utility Pump and Motor unit. 316 Stainless Steel Construction, with a Neoprene Impeller and Lip Type Seal. Pump is Close Coupled to a 1/3 Horsepower, 1725 RPM, 115/230 Volts, Single, TEFC (Totally Enclosed Fan Cooled) Motor. Comes with a 6 foot cord and three prong plug. Ports are 1/2 Inch NPT Internal.
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 4720-0001 is a 316 stainless steel Flexible Impeller pump with a Neoprene Impeller, Lip Type seal, 1/2 Inch NPT Internal Ports, coupled to a 1/3 Horsepower, 1725 RPM, 115/230 Volts, Single Phase, TEFC, 60 HZ Motor, with a 6 foot cord and three prong plug. The Neoprene impeller in this pump is good for water and general-purpose pumping. The operating temperature limits of the pump depend on the impeller compound. The following range applies for Neoprene impellers : 45 degrees F to 180 degrees F (7 degrees C to 82 degrees C). These pumps can be used where stainless steel, self-priming, 11 GPM (41 LPM) flow, debris-tolerance, and portable 115V AC or 230V AC 60Hz operation is desired. These flexible impeller pumps are self-priming and pump instantly with dry suction, lifts up to 10 feet (3m) and up to 22 feet (6.7m) when wetted. Permits cleaner, safer installations. No foot valve required. The stainless steelbodies and stainless steel shafts are well suited for industrial and chemical applications. These pumps have replaceable cams and wearplates for extended product life, and they have one moving part a tough, long-lived, wear-resistant flexible impeller, lubricated by the liquid being pumped. No metal-to-metal pumping action no gears to jam, clog or become noisy.
Motor is not explosion-proof. Do not use where flammable vapors are present. Do not pump solvents, thinners or gasoline. Do not run dry.
Features :
Product Specs :
316 Stainless Steel pump head.
11 GPM output at 10 feet total head.
Self-Priming from 810 feet dry, from 1822 feet when wetted.
Continuous duty motor with thermal overload protection.
6 foot power cord with three prong plug.
Convenient carrying handle.
Easy to service and maintain.
Will tolerate abrasive wear.
Handles hard and soft solids without clogging.
Non pulsating flow.
Parts and Accessories for Jabsco model 4720-0001
Major Overhaul Kit / Rebuild Kit :
Catalog # 90045-0001, Service Kit, Neoprene, with Neoprene Impeller, Seal and O-Ring
Price: $ 425.25
Impeller :
Catalog # 6174-0001, Impeller, Neoprene
Price: $ 208.50
Shaft Seal :
Catalog # 92700-0520, Seal
Price: $ 99.18
Applications
These pumps are versatile, multipurpose units that fill in where more specialised and expensive units are not practical for the job in hand. This Jabsco flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. It operates at low or high speeds, can be mounted at any angle and pumps in either direction with equal efficiency.
Chemical and Industrial applications for this pump include Industrial Motor Pump Unit Circulating, Transferring and Filtering of Chemicals, Plating Solutions, Pharmaceuticals, Cosmetics and Farm Chemicals, Emptying and Filling Carboys, Vats, Tanks, Barrels or Entire Systems.
When corrosive fluids are handled, pump life will be prolonged if pump is flushed with water after each use or after each work day.
