Jabsco # 52530-1100 Double Stack 9 Pump And Tank System
Jabsco # 52530-1100
Jabsco catalog # 52530-1100, Double Stack 9 Pump and Tank System. Pump is Coupled to a 24 Volt DC Motor. Ports are 3/4 Inch Hose Barb.
Price : $ 1118.52
Product Information :
Parts Page (click here)

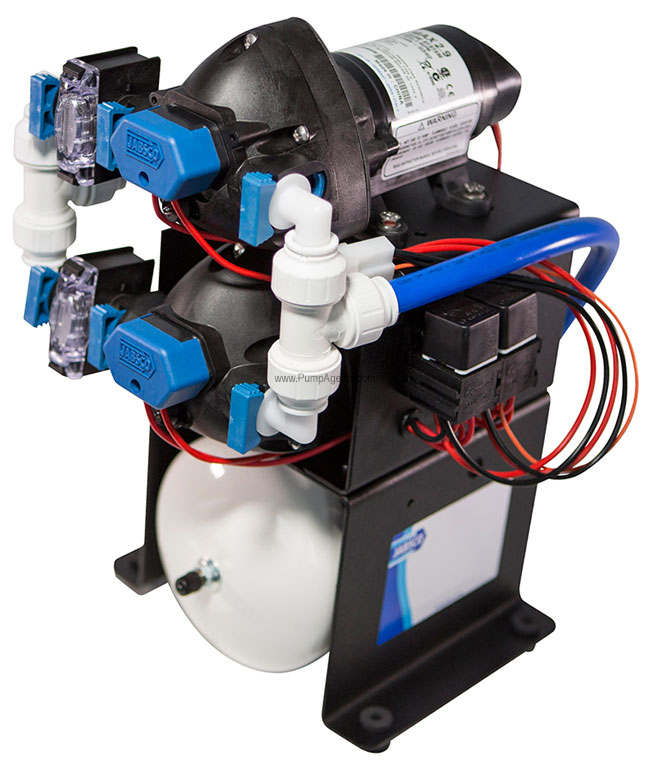

Product Manual PDF (view)The Jabsco 52530-1100 is a double stack 9 pump and tank system with a 3/4 Inch Hose Barb Ports, coupled to a 24 Volt DC Motor. This is an Automatic Two Stage Waste System that combines two pumps assembled onto a pre-pressurized accumulator tank to smooth flow and prevent pump cycling. It is self-priming up to 6-10 feet (2-3m) and has a flow rate of 9 GPM (34 LPM) and a shut-off pressure of 40 psi (2.8 bar). Under low demand conditions only the primary pump operates delivering 4.8 GPM (18 lpm), and under high demand the secondary pump is activated and flow increases to 9 GPM (34 LPM). Under maximum demand the total current draw is 16 amps (12v) or 8 amps (24v). This pre-packaged system means all the system connection work is done for you in one neat and easily accessible package. In heavy-demand situations on larger boats, the twin pump systems provide added security; should one pump fail, the second will continue to operate.
Features :
Product Specs :
Run-dry ability.
Smooth, even flow.
Two stage operation.
Internal bladder accumulator tank.
Thermal overload protection.
Complies with ISO 8846 MARINE .
Shipping weight per unit 9.5 kg .
Parts and Accessories for Jabsco model 52530-1100
Applications
Ideal for pleasure and commercial boats with high demand requirements. All units mounted on one board for rapid and easy installation by boatbuilder and boat owner alike. The WPS Double Stack System should be fixed securely to a flat surface in any suitable location within the vessel where it remains accessible for routine maintenance. The unit should be installed within the pipework system after the water tank and before the pipeline divides to serve the hot water heater or other outlets. Connect the pipe from the water tank to the pump inlet. Connect the outlet pipework to the discharge on the accumulator tank.
