Jabsco # 59520-0000B Commercial Circulation Pump
Jabsco # 59520-0000B

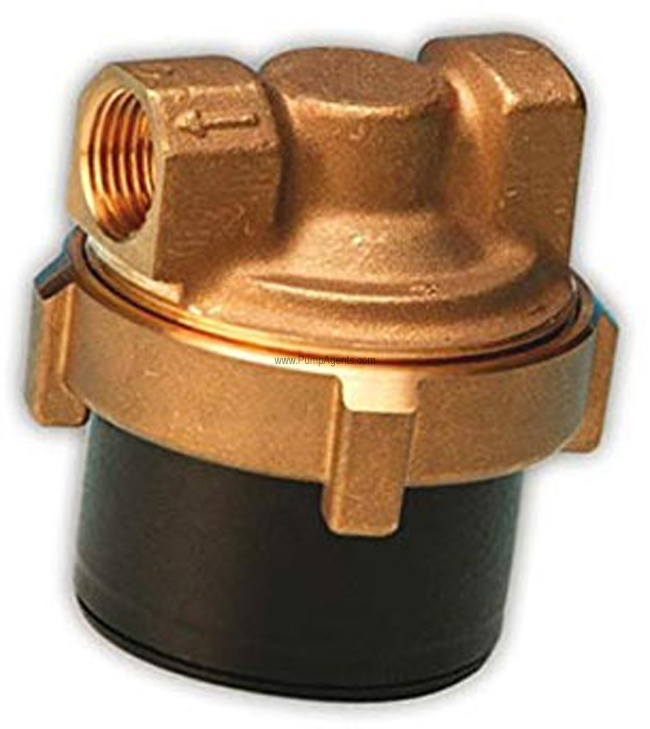

Jabsco catalog # 59520-0000B, Commercial Centrifugal Circulation Pump and Motor unit. Brass Construction. Pump is Close Coupled to a 8-24 Volts DC Motor. Ports are 1/2 Inch Hose Barb.
Price : $ 263.06
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 59520-0000B is a brass centrifugal pump with a 1/2 Inch Hose Barb Ports, coupled to a 8-24 Volts DC Motor. This Jabsco Magnetic Drive Brushless DC Pump offers exceptional life and reliability. The motors last in excess of 10,000 hours, and the seal-less pump heads remove any chance of leaks. Small, compact, and specifically designed for circulation duties, this continuously rated pump provides trouble-free operation. Applications include hot water circulation and raw water cooling.
Do not use this Jabsco pump for petrol, petroleum products, or fluids with a flashpoint below 37 degrees C .
Features :
Product Specs :
Up to 21 litres/min at 0.10 bar .
Variable flow - 5 speed control.
Ignition protected .
Meets EMC requirements.
Connections for 1/2 Inch BSP.
Continuously rated.
Pumps water at 80 degrees C .
Handles aggressive liquids.
Long life brushless DC motor.
Parts and Accessories for Jabsco model 59520-0000B
Applications
Fit this pump in a dry position, as close as possible to the liquid being pumped. The pump must be installed below the lowest liquid level. Use 1/2 Inch spiral reinforced hose or semirigid pipework systems. The pipe runs should be as straight and as short as possible, avoiding rising and dipping over obstructions.
